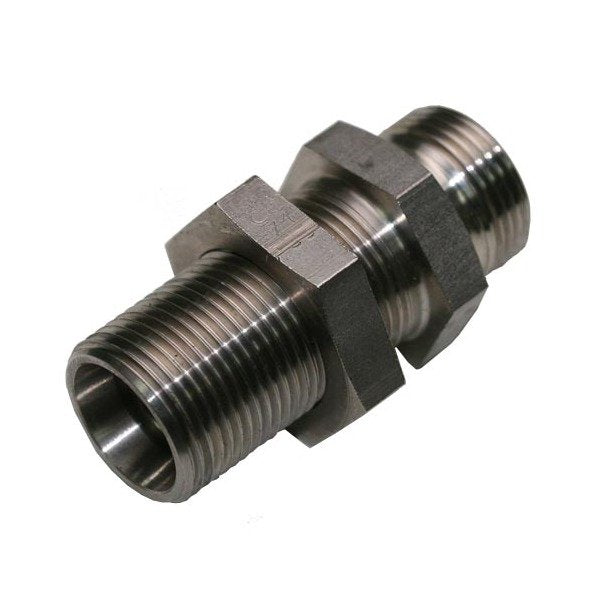

Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting
Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting
SKU:FIT-25fbbe
Premium Stainless Steel Bulkhead Union fitting for durable and reliable performance in industrial applications. Compliant with DIN 2353 standards.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting
$34.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Union, designed for light-duty pressure applications, features a tube diameter of 42.0mm and a thread size of 52x2. Built to withstand up to 160 bar of nominal operating pressure, this fitting meets DIN 2353 standards. With precise dimensions of L1: 30.0mm, L2: 47mm, L3: 19.0mm, L4: 36mm, CH1: 60mm, and CH2: 65mm, this bulkhead connection ensures reliable performance and durability, making it an ideal choice for various industrial settings.
Product Specifications
Specifications Ch1
60 mm
Specifications Ch2
65 mm
Specifications L1
30.0 mm
Specifications L2
47 mm
Specifications L3
19.0 mm
Specifications L4
36 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
