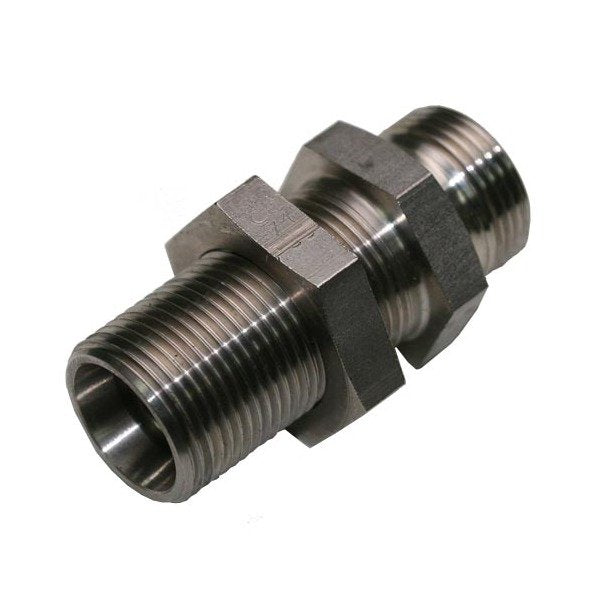

Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting Body Only
Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting Body Only
SKU:FIT-c9bd8b
High-quality Stainless Steel Bulkhead Union Body for DIN 2353 Compression Fittings, perfect for light-duty applications with 315 bar pressure.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting Body Only
$25.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting Body Only
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Union Body Only is a durable and reliable component designed for light-duty applications with a nominal operating pressure of 315 bar. Crafted from high-quality stainless steel, this fitting ensures longevity and resistance to corrosion. Featuring precise specifications such as a 15.0mm tube diameter and DIN 2353 compliance, it guarantees a secure and leak-free connection. Ideal for institutional and government procurement needs that prioritize performance and reliability.
Product Specifications
Specifications Ch1
27 mm
Specifications Ch2
30 mm
Specifications L1
19.0 mm
Specifications L2
38.0 mm
Specifications L3
12.0 mm
Specifications L4
31 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
15.0 mm
