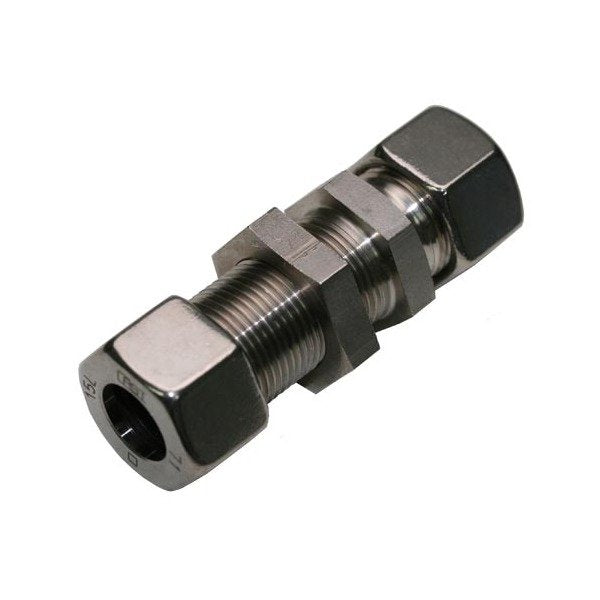

Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting with B4 Ring

Name: Stainless Steel Bulkhead Union - DIN 2353 Compression Fitting with B4 Ring
Brand: World Wide Metric, Inc.
SKU: FIT-f89a48
Price: 45.99 USD
Availability: OutOfStock

SKU:FIT-f89a48

Stainless Steel Bulkhead Union for heavy-duty applications, DIN 2353 standard compliant.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

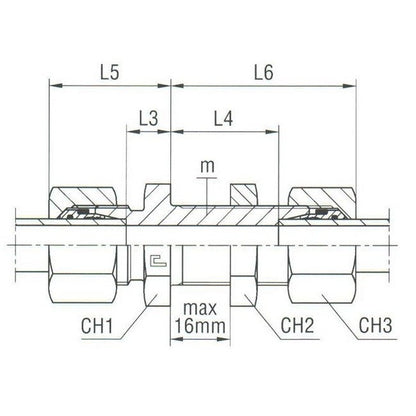

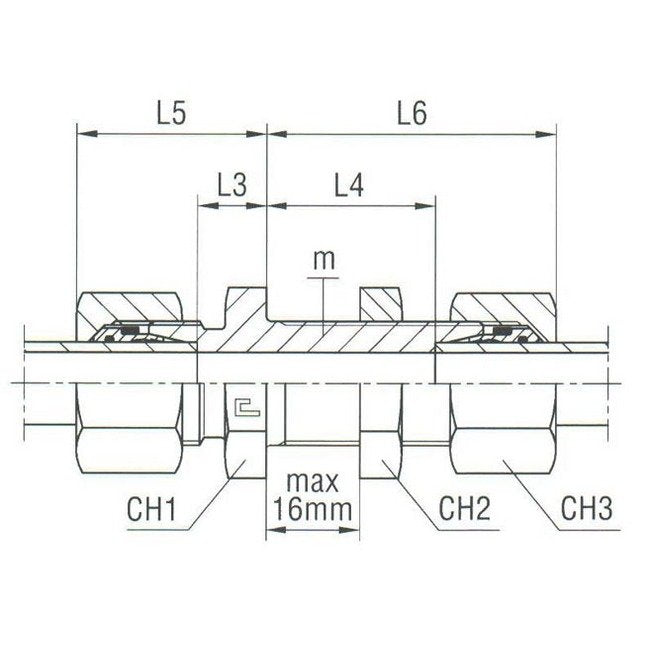

The Stainless Steel Bulkhead Union equipped with a B4 Ring is designed for heavy-duty applications, featuring a tube diameter of 25.0mm and a strong thread size of 36x2. With a nominal operating pressure of 400 bar, this fitting ensures reliable performance. Measuring at L3: 20.0mm, L4: 35mm, L5: 44mm, L6: 59mm, CH1: 46mm, CH2: 46mm, CH3: 46mm, it complies with DIN 2353 standards, making it a durable and secure choice for institutional installations.

Product Specifications

Specifications Ch1

46 mm

Specifications Ch2

46 mm

Specifications Ch3

46 mm

Specifications L3

20.0 mm

Specifications L4

35 mm

Specifications L5

44 mm

Specifications L6

59 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

36x2

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

25.0 mm
