Stainless Steel Bulkhead Union Fitting - Body Only, DIN 2353 Compression

Name: Stainless Steel Bulkhead Union Fitting - Body Only, DIN 2353 Compression
Brand: World Wide Metric, Inc.
SKU: FIT-ccd2da
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-ccd2da

Durable Stainless Steel Bulkhead Union Fitting for leak-free tube connections. Compliant with DIN 2353 standards, ideal for light-duty applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

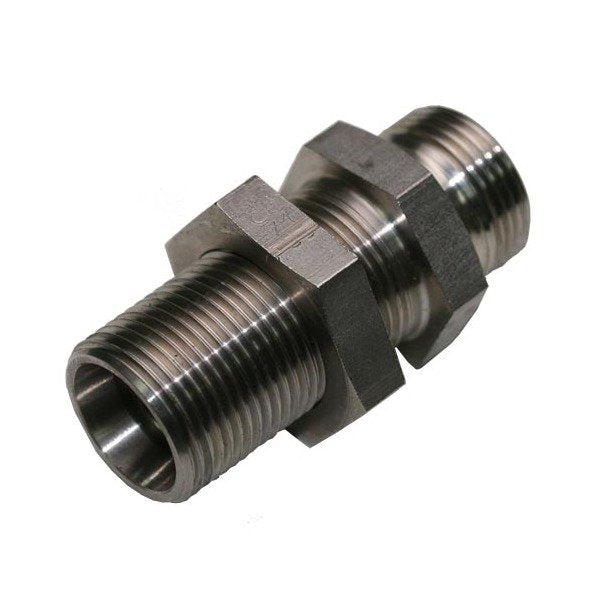

The Stainless Steel Bulkhead Union Fitting offers reliability in light-duty applications with a robust design for seamless tube connections. Crafted from durable stainless steel, this fitting ensures leak-free performance under pressure. Compliant with DIN 2353 standards, it features a 26x1.5mm thread size, 18.0mm tube diameter, and a nominal operating pressure of 315 bar. Enhance your fluid systems with this precision-engineered Bulkhead Union fitting.

Product Specifications

Specifications Ch1

32 mm

Specifications Ch2

36 mm

Specifications L1

21.0 mm

Specifications L2

40.0 mm

Specifications L3

13.5 mm

Specifications L4

32.5 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

26x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

18.0 mm
