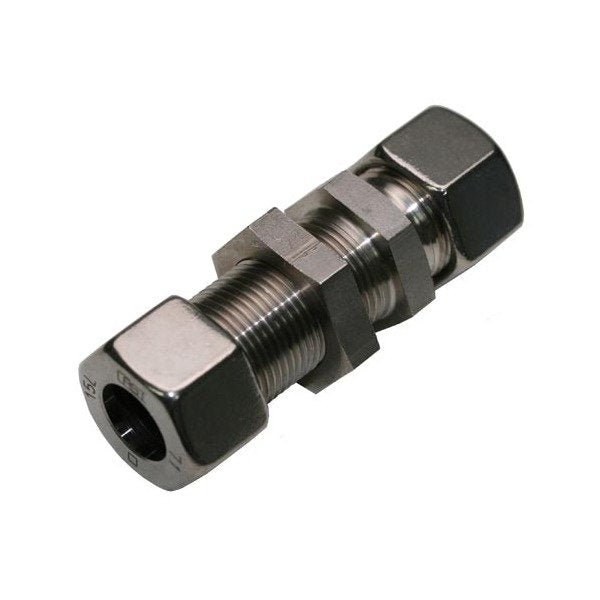

Stainless Steel Bulkhead Union Fitting - DIN 2353 Compression, 25.0mm Tube
Stainless Steel Bulkhead Union Fitting - DIN 2353 Compression, 25.0mm Tube
SKU:FIT-9df61e
Heavy-duty Stainless Steel Bulkhead Union Fitting - DIN 2353 Compliant, 25.0mm Tube, 400 bar Pressure
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union Fitting - DIN 2353 Compression, 25.0mm Tube
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union Fitting - DIN 2353 Compression, 25.0mm Tube
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Bulkhead Union Fitting is a heavy-duty solution designed for demanding applications. Made from high-quality stainless steel, it ensures durability and corrosion resistance. With a tube diameter of 25.0mm and a pressure rating of 400 bar, it meets stringent performance requirements. Compliant with DIN 2353 standards, this fitting provides secure connections and leak-free operation. Its precise dimensions and robust construction make it ideal for industrial and commercial use.

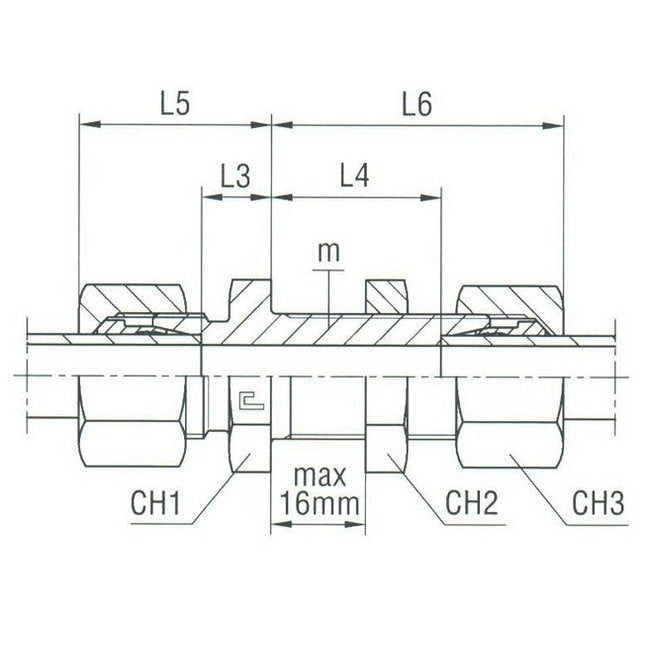

Product Specifications
Specifications Ch1
46 mm
Specifications Ch2
46 mm
Specifications Ch3
46 mm
Specifications L3
20.0 mm
Specifications L4
35 mm
Specifications L5
44 mm
Specifications L6
59 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
36x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
25.0 mm
