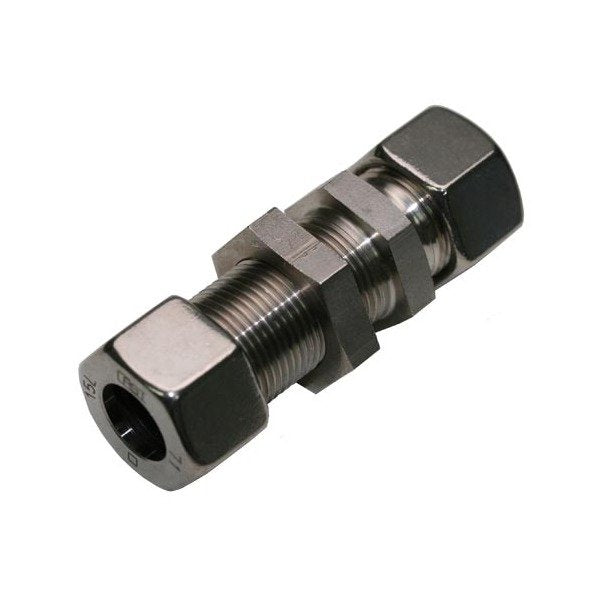

Stainless Steel Bulkhead Union Fitting with DIN 2353 Compression, 16.0mm Tube Diameter

Name: Stainless Steel Bulkhead Union Fitting with DIN 2353 Compression, 16.0mm Tube Diameter
Brand: World Wide Metric, Inc.
SKU: FIT-25e61e
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-25e61e

Heavy-duty stainless steel bulkhead union fitting designed for 16.0mm tube diameter, 400 bar pressure.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

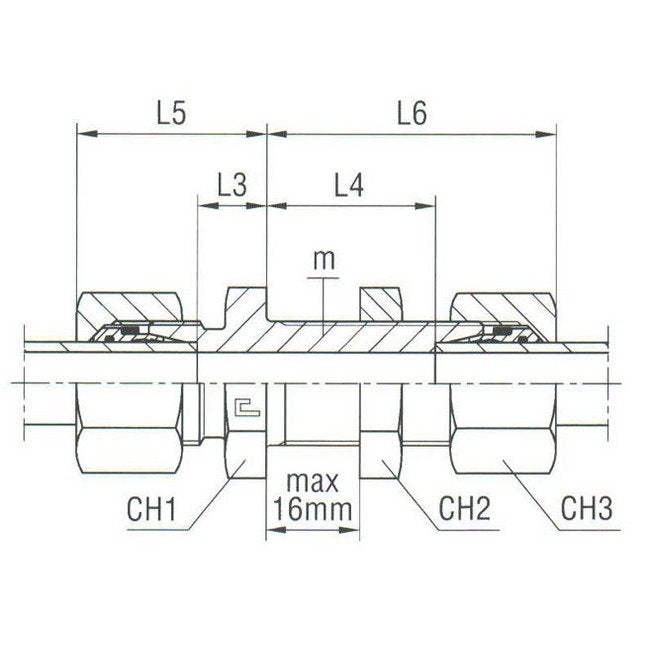

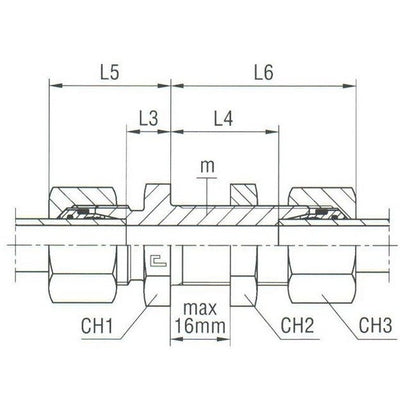

The Bulkhead Connection - Equipped B4 Ring is a heavy-duty stainless steel fitting designed for reliability under pressure. With a tube diameter of 16.0mm and a thread size of 24x1.5, this union fitting operates at a nominal pressure of 400 bar. Meeting DIN 2353 standards, it is precision-engineered with dimensions that ensure a secure connection. The compact design with precise measurements like L3, L4, L5, L6, CH1, CH2, and CH3 make it a versatile choice for various applications.

Product Specifications

Specifications Ch1

32 mm

Specifications Ch2

32 mm

Specifications Ch3

30 mm

Specifications L3

16.5 mm

Specifications L4

31.5 mm

Specifications L5

35 mm

Specifications L6

50 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

24x1.5

Specifications Nominal Operating Pressure

400 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

16.0 mm
