Stainless Steel Bulkhead Union Fitting with DIN 2353 Compression - Equipped B4 Ring
Stainless Steel Bulkhead Union Fitting with DIN 2353 Compression - Equipped B4 Ring
SKU:FIT-168eea
High-quality Stainless Steel Bulkhead Union Fitting with DIN 2353 Compression and Equipped B4 Ring for reliable light-duty applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union Fitting with DIN 2353 Compression - Equipped B4 Ring
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union Fitting with DIN 2353 Compression - Equipped B4 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

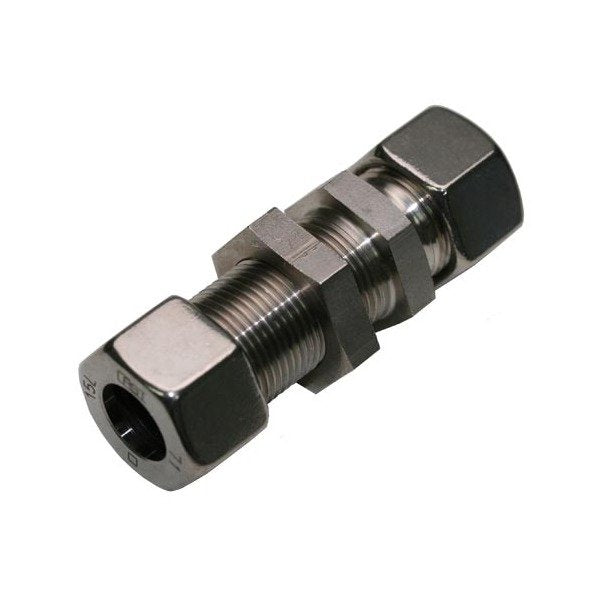

The Stainless Steel Bulkhead Union Fitting featuring the Equipped B4 Ring is a top-of-the-line solution for light-duty applications. Crafted from high-grade stainless steel, this fitting ensures durability and corrosion resistance. With a tube diameter of 42.0mm and a nominal operating pressure of 160 bar, it meets stringent DIN 2353 standards. The precise dimensions make it suitable for a range of installations, enhancing efficiency and reliability in fluid systems.

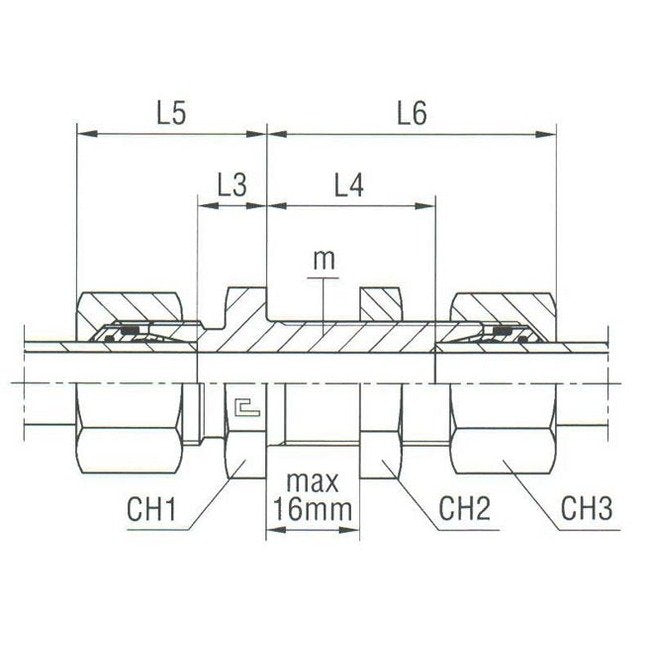

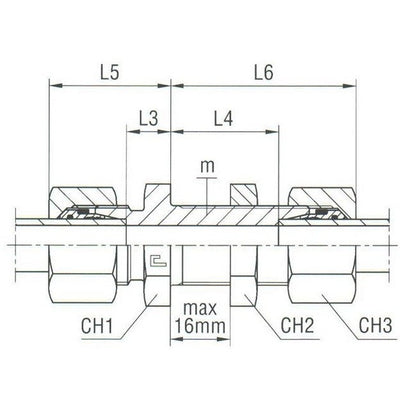

Product Specifications
Specifications Ch1
60 mm
Specifications Ch2
65 mm
Specifications Ch3
60 mm
Specifications L3
19.0 mm
Specifications L4
36 mm
Specifications L5
42 mm
Specifications L6
59 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
52x2
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
