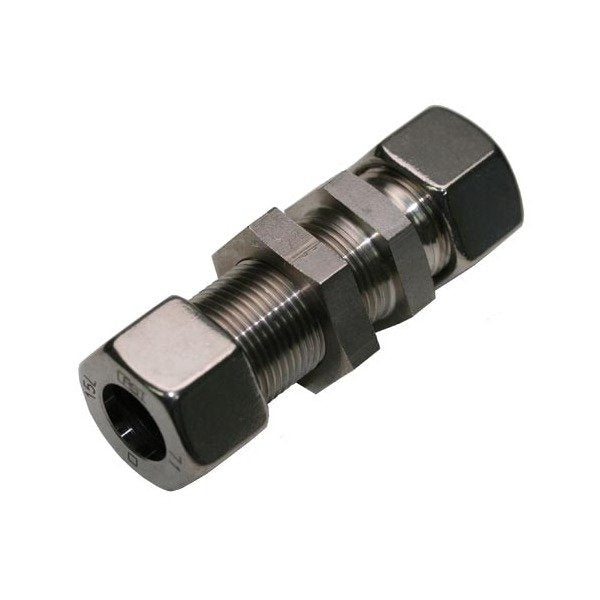

Stainless Steel Bulkhead Union with B4 Ring - DIN 2353 Compression Fitting

Name: Stainless Steel Bulkhead Union with B4 Ring - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-ffb4f3
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-ffb4f3

Reliable Stainless Steel Bulkhead Union for secure tube connections in light duty applications. Conforms to DIN 2353 standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

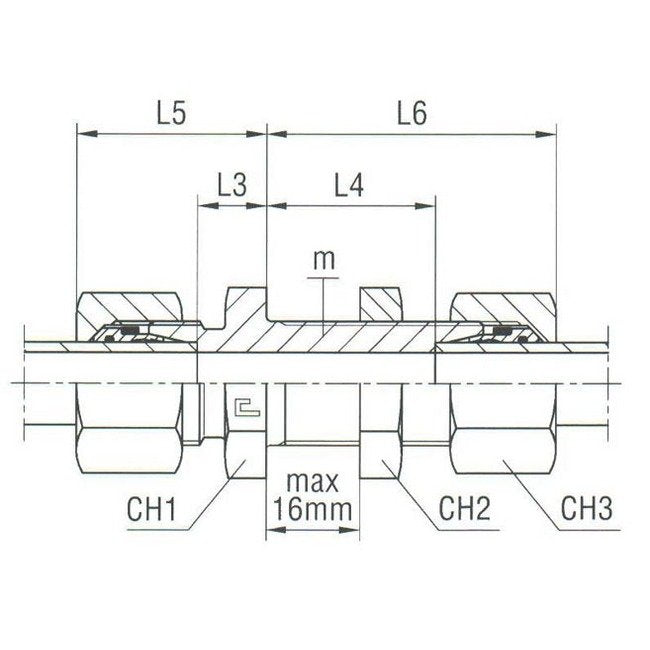

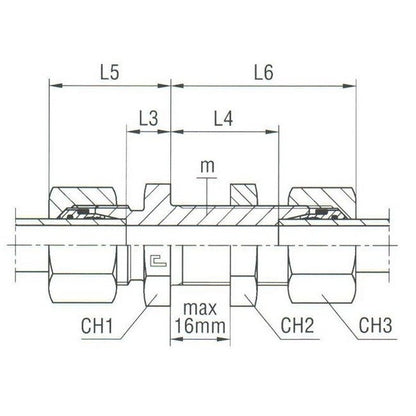

The Stainless Steel Bulkhead Union with B4 Ring is designed for durability and reliability in light duty applications. Crafted from high-quality stainless steel, this fitting ensures a secure connection with a tube diameter of 8.0 mm and a thread size of 14x1.5. With a nominal operating pressure of 315 bar, it meets DIN 2353 standards for superior performance. Its precise dimensions of L3: 8.0 mm, L4: 27 mm, L5: 23 mm, L6: 42 mm, CH1: 19.0 mm, CH2: 19.0 mm, and CH3: 17 mm guarantee a perfect fit every time.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Ch2

19.0 mm

Specifications Ch3

17 mm

Specifications L3

8.0 mm

Specifications L4

27 mm

Specifications L5

23 mm

Specifications L6

42 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

14x1.5

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm
