Stainless Steel Bulkhead Union with DIN 2353 Compression - 14.0 mm Tube, 630 bar
Stainless Steel Bulkhead Union with DIN 2353 Compression - 14.0 mm Tube, 630 bar
SKU:FIT-bdd073
High-performance Stainless Steel Bulkhead Union for 14.0 mm tubes, DIN 2353 compliant, rated at 630 bar.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union with DIN 2353 Compression - 14.0 mm Tube, 630 bar
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union with DIN 2353 Compression - 14.0 mm Tube, 630 bar
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

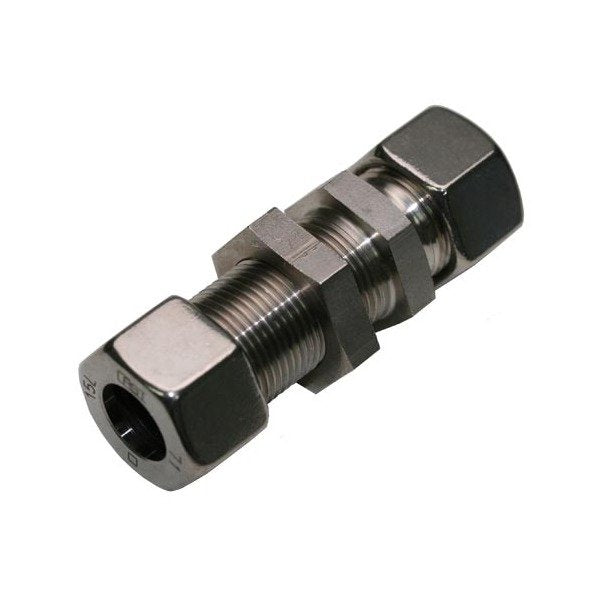

The Stainless Steel Bulkhead Union with DIN 2353 Compression and heavy-duty pressure rating of 630 bar is a top-tier solution for industrial fluid systems. Crafted from high-grade stainless steel, this fitting ensures durability and corrosion resistance. With precise dimensions and compliance with DIN 2353 standards, it guarantees a secure and leak-free connection for 14.0 mm tubes. The Bulkhead Union design allows for easy installation and maintenance, making it ideal for applications demanding superior performance.

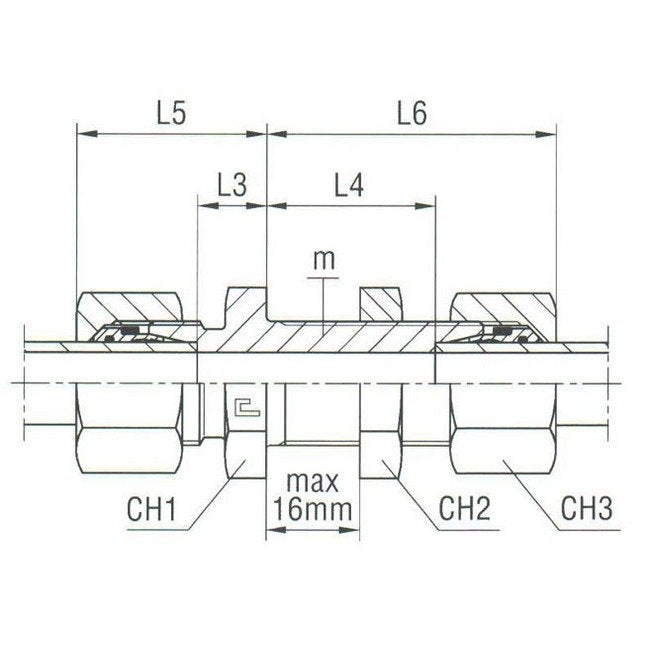

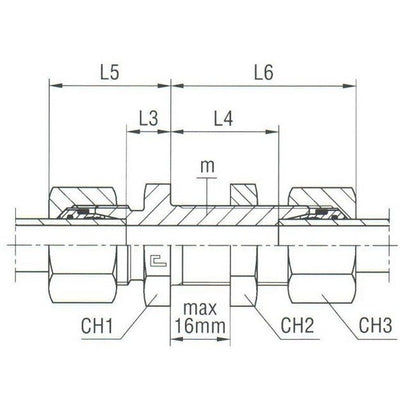

Product Specifications
Specifications Ch1
30 mm
Specifications Ch2
30 mm
Specifications Ch3
27 mm
Specifications L3
17.0 mm
Specifications L4
32.0 mm
Specifications L5
35 mm
Specifications L6
50 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
22x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
14.0 mm
