Stainless Steel Bulkhead Union with DIN 2353 Compression, 6.0mm Tube Diameter
Stainless Steel Bulkhead Union with DIN 2353 Compression, 6.0mm Tube Diameter
SKU:FIT-256fa9
Heavy-duty Stainless Steel Bulkhead Union for secure DIN 2353 Compression fittings. Pressure rating: 630 bar.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union with DIN 2353 Compression, 6.0mm Tube Diameter
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union with DIN 2353 Compression, 6.0mm Tube Diameter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

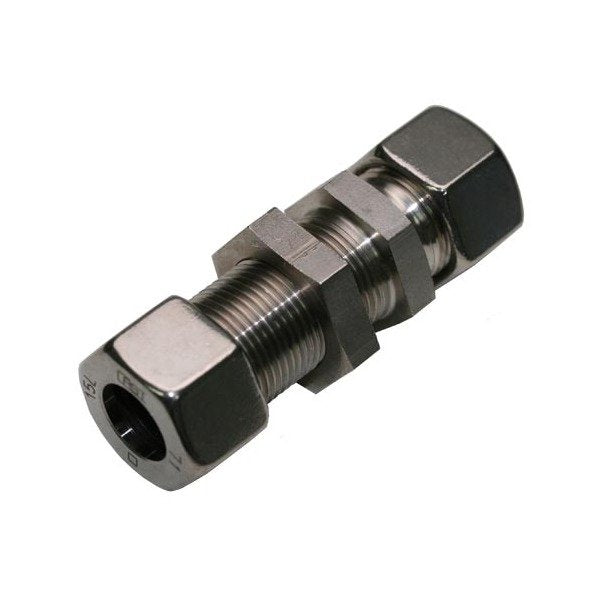

The Stainless Steel Bulkhead Union with DIN 2353 Compression and a sturdy B4 ring offers heavy-duty performance with a pressure rating of 630 bar. Crafted from durable stainless steel, it ensures reliable connections in demanding industrial settings. With precise dimensions meeting DIN 2353 standards, this fitting guarantees secure and leak-free installations every time.

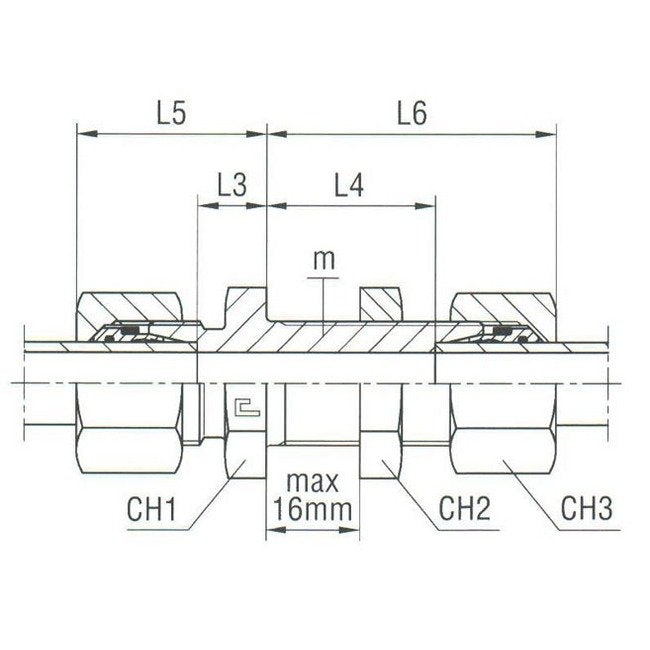

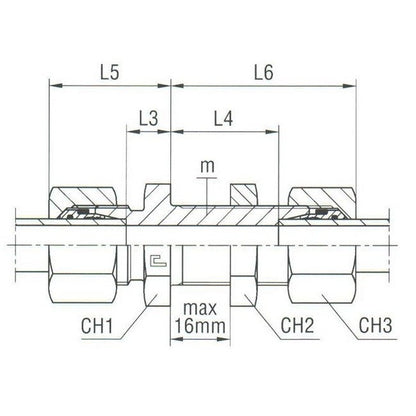

Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications Ch3
17 mm
Specifications L3
12.0 mm
Specifications L4
29 mm
Specifications L5
27 mm
Specifications L6
44 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
14x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
