Stainless Steel Bulkhead Union with DIN 2353 Compression - B3 Ring
Stainless Steel Bulkhead Union with DIN 2353 Compression - B3 Ring
SKU:FIT-d79a62
Durable Stainless Steel Bulkhead Union for high-pressure applications. DIN 2353 Compression fitting with B3 Ring.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union with DIN 2353 Compression - B3 Ring
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union with DIN 2353 Compression - B3 Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

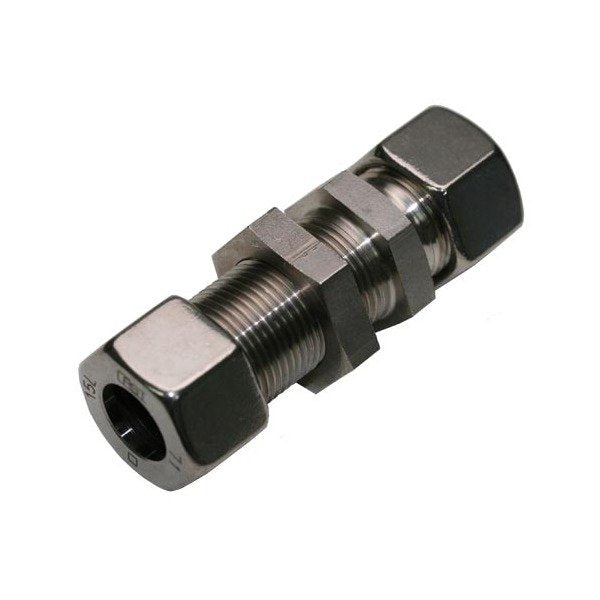

The Stainless Steel Bulkhead Union with DIN 2353 Compression and equipped B3 Ring is designed for heavy-duty industrial applications. Made from durable stainless steel, this fitting ensures reliable performance under pressure up to 400 bar. With precise dimensions and compliance with DIN 2353 standards, it offers a secure connection with a tube diameter of 30.0 mm. The Bulkhead Union features a threaded size of 42x2 for easy installation and a compact design, meeting the stringent requirements of institutional and government procurement standards.

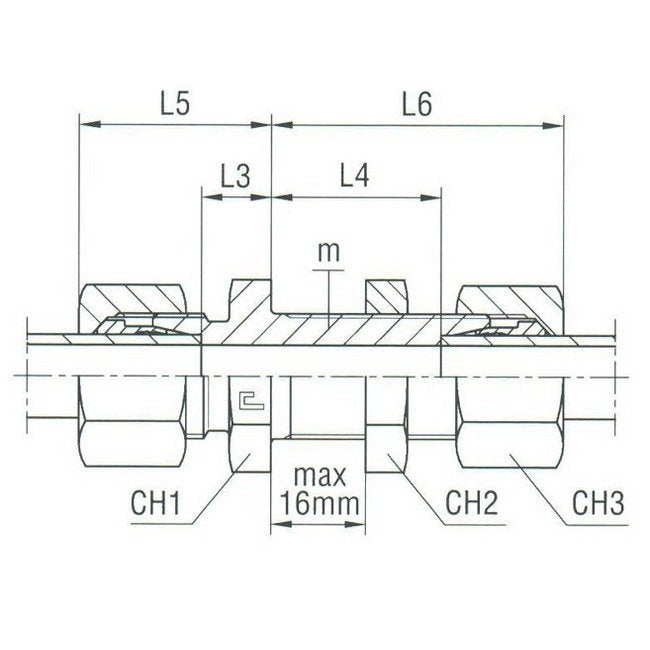

Product Specifications
Specifications Ch1
50 mm
Specifications Ch2
50 mm
Specifications Ch3
50 mm
Specifications L3
21.5 mm
Specifications L4
37.5 mm
Specifications L5
48 mm
Specifications L6
64 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
42x2
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
30.0 mm
