Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
SKU:FIT-f9c612
Secure your heavy-duty operations with the Stainless Steel Bulkhead Union - DIN 2353 Compression Fittings, designed for 400 bar pressure.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

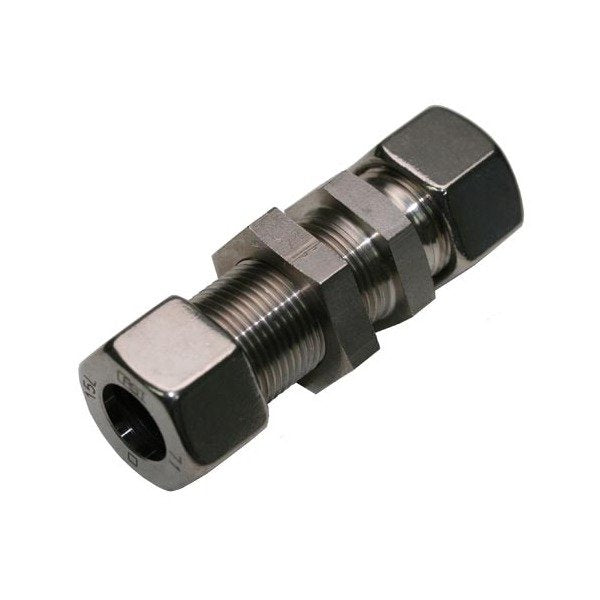

The Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings is designed for heavy-duty applications with a nominal operating pressure of 400 bar. Crafted from durable stainless steel, this fitting features a tube diameter of 16.0 mm and precise 24x1.5 m - thread size. With dimensions meeting DIN 2353 standards, it ensures secure and reliable connections. Ideal for industrial and institutional settings requiring sturdy fittings that meet stringent procurement requirements.

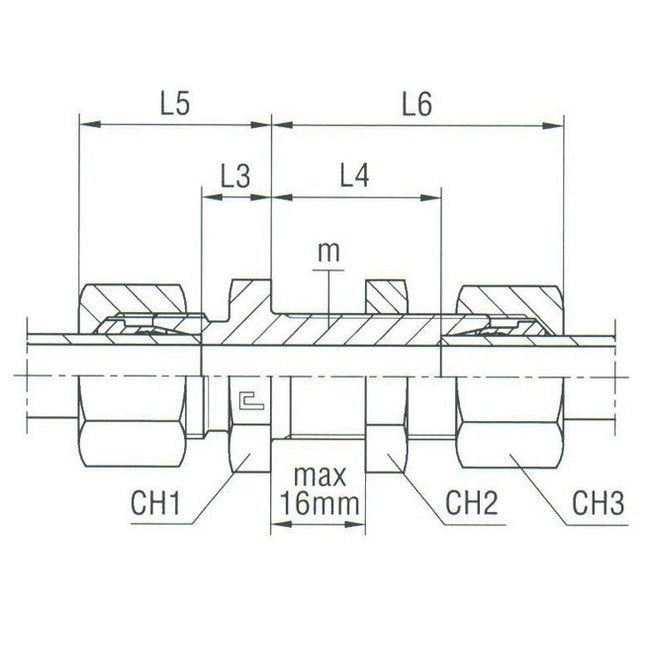

Product Specifications
Specifications Ch1
32 mm
Specifications Ch2
32 mm
Specifications Ch3
30 mm
Specifications L3
16.5 mm
Specifications L4
31.5 mm
Specifications L5
35 mm
Specifications L6
50 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
24x1.5
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
16.0 mm
