Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
SKU:FIT-ba843c
High-quality Stainless Steel Bulkhead Union for light-duty applications, DIN 2353 compliant
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

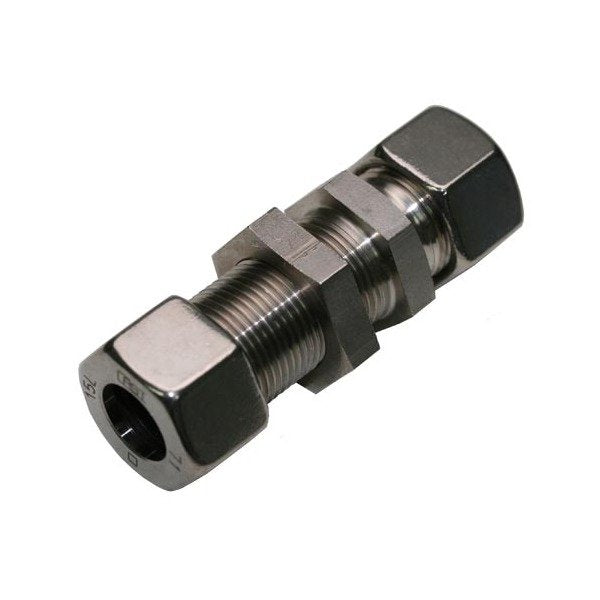

The Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings - Equipped B3 Ring is specifically designed for light-duty applications with a tube diameter of 6.0 mm and a nominal operating pressure of 315 bar. Constructed from high-quality stainless steel, this fitting ensures durability and reliability. With precise dimensions meeting DIN 2353 standards, it offers a seamless connection in various industrial settings.

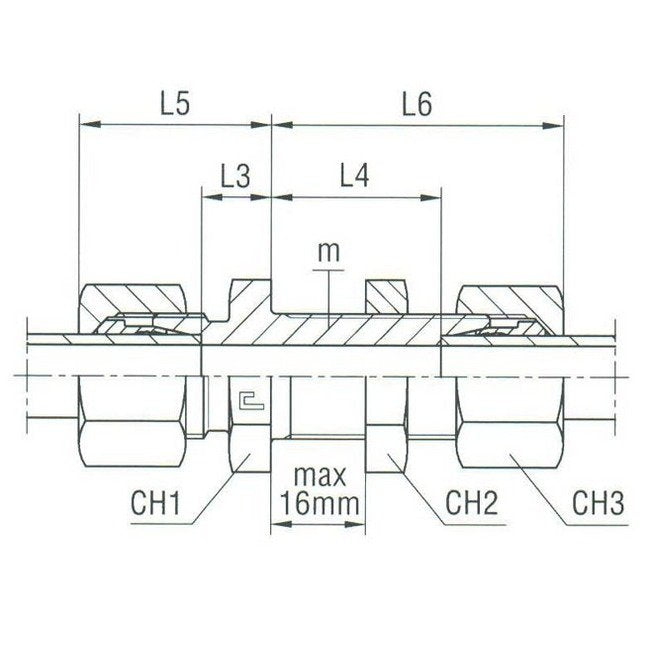

Product Specifications
Specifications Ch1
17.0 mm
Specifications Ch2
17.0 mm
Specifications Ch3
14 mm
Specifications L3
7 mm
Specifications L4
27 mm
Specifications L5
22 mm
Specifications L6
42 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
12x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
