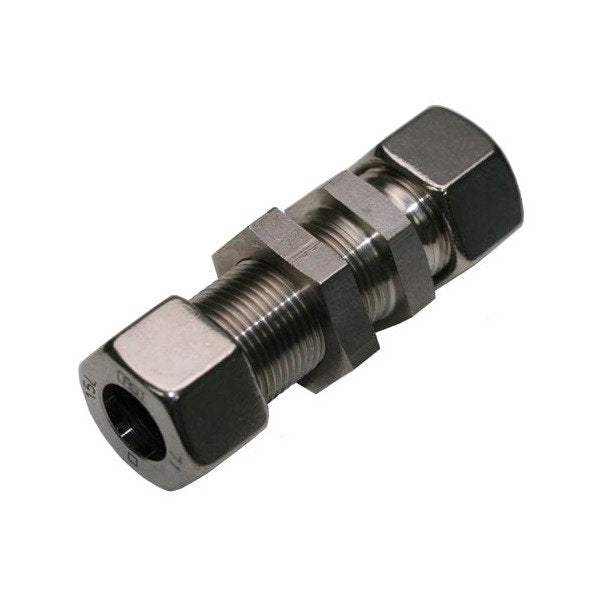

Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
SKU:FIT-6989b4
Durable stainless steel Bulkhead Union for secure tube connections. DIN 2353 compliant, ideal for heavy-duty applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

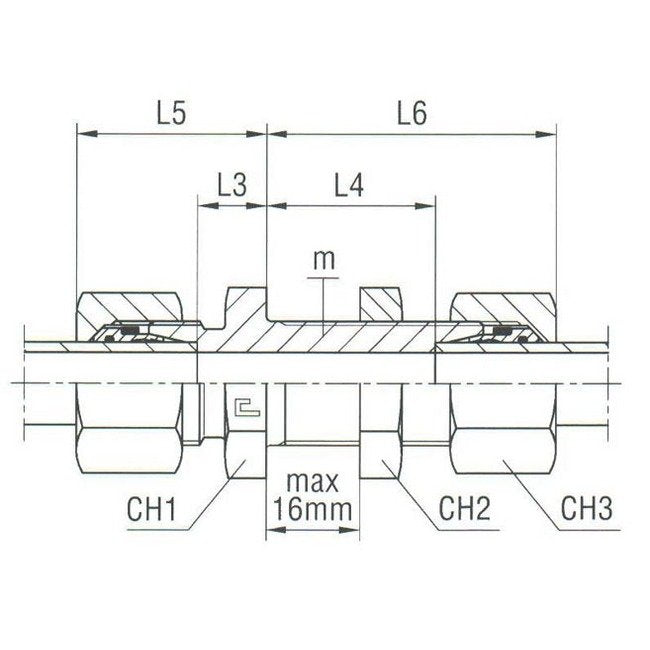

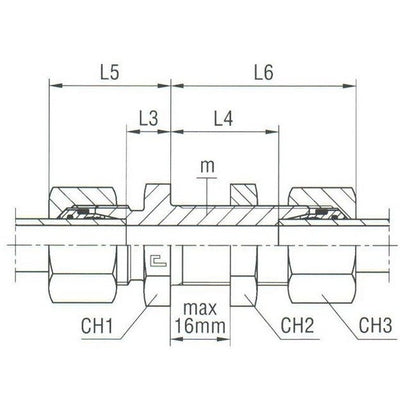

The Bulkhead Connection - Equipped B4 Ring is a heavy-duty fitting designed for reliable tube connections. Crafted from durable stainless steel, it features a tube diameter of 8.0 mm and a thread size of 16x1.5. With a nominal operating pressure of 630 bar, this bulkhead union ensures secure and leak-free installations. Measuring L3: 13 mm, L4: 29 mm, L5: 28 mm, L6: 44 mm, CH1: 22 mm, CH2: 22 mm, and CH3: 19 mm, it meets stringent DIN 2353 standards for quality and performance.
Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
22 mm
Specifications Ch3
19 mm
Specifications L3
13 mm
Specifications L4
29 mm
Specifications L5
28 mm
Specifications L6
44 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
8.0 mm
