Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
SKU:FIT-198216
Light-duty Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings, 315 bar. Corrosion-resistant, precise fit.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

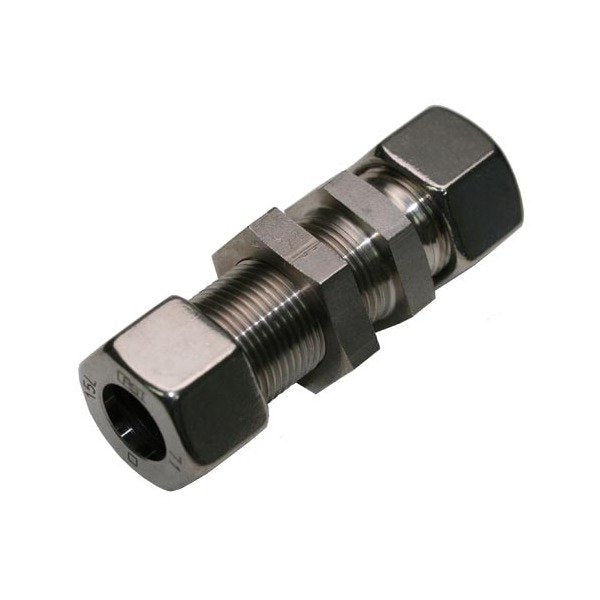

The Stainless Steel Bulkhead Union with DIN 2353 Compression Fittings is designed for light-duty applications with a nominal operating pressure of 315 bar. Crafted from high-quality stainless steel, this fitting ensures durability and corrosion resistance. Featuring a tube diameter of 12.0 mm and precise thread size of 18x1.5, it guarantees a secure and leak-free connection. With compliance to DIN 2353 standards, this bulkhead union is a reliable choice for various industrial and institutional settings.

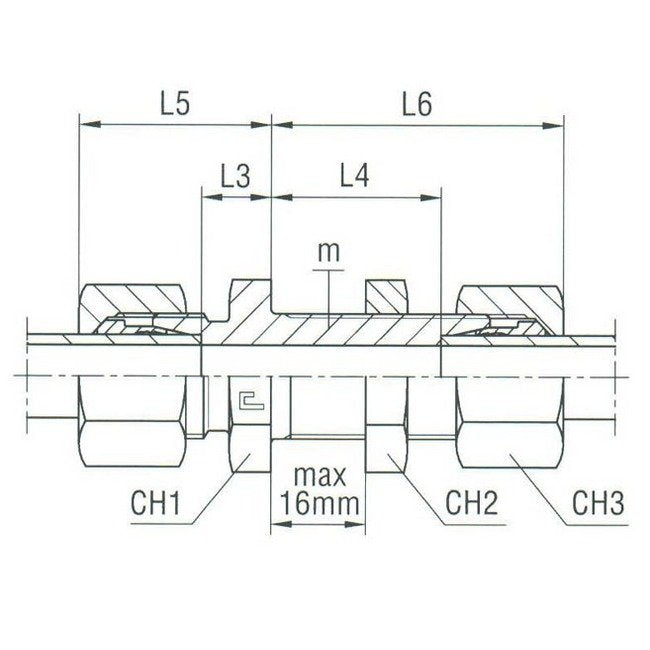

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
24 mm
Specifications Ch3
22 mm
Specifications L3
10 mm
Specifications L4
29 mm
Specifications L5
25 mm
Specifications L6
44 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
