Stainless Steel Bulkhead Union with Equipped B3 Ring
Stainless Steel Bulkhead Union with Equipped B3 Ring
SKU:FIT-5a5d11
High-pressure stainless steel Bulkhead Union with Equipped B3 Ring for secure tube connections. DIN 2353 compliant.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Stainless Steel Bulkhead Union with Equipped B3 Ring
$39.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bulkhead Union with Equipped B3 Ring
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

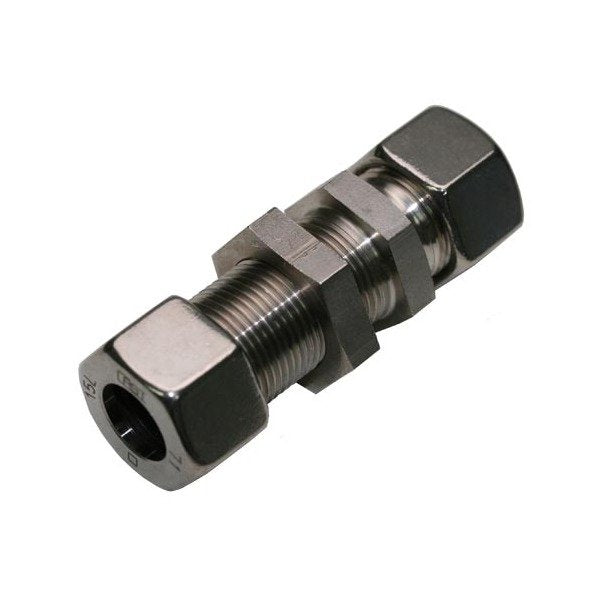

The Stainless Steel Bulkhead Union with Equipped B3 Ring is a heavy-duty fitting designed for reliable and secure tube connections in high-pressure systems. Made of premium stainless steel, this fitting ensures durability and corrosion resistance. With a tube diameter of 10.0 mm and a nominal operating pressure of 630 bar, it meets stringent DIN 2353 Compression Fittings standards. The Bulkhead Union design offers exceptional structural integrity and easy installation, making it ideal for industrial applications where leak-free connections are essential.

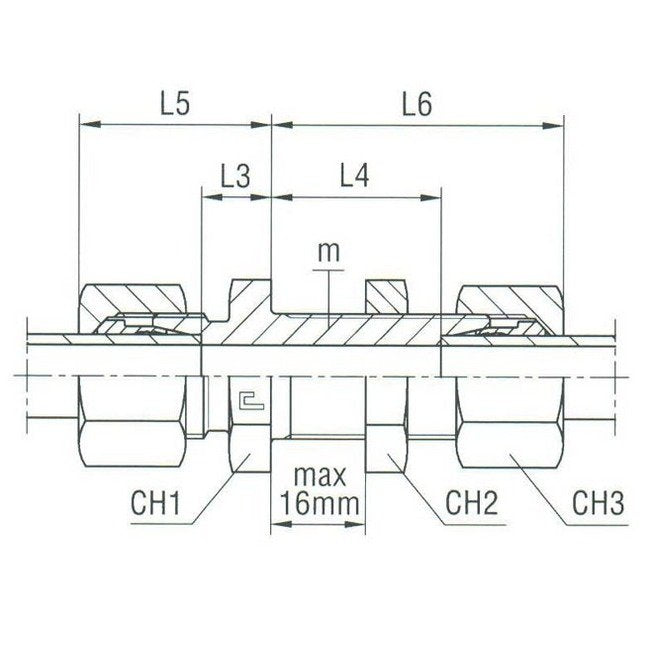

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
24 mm
Specifications Ch3
22 mm
Specifications L3
14.5 mm
Specifications L4
29.5 mm
Specifications L5
31 mm
Specifications L6
46 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
630 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
