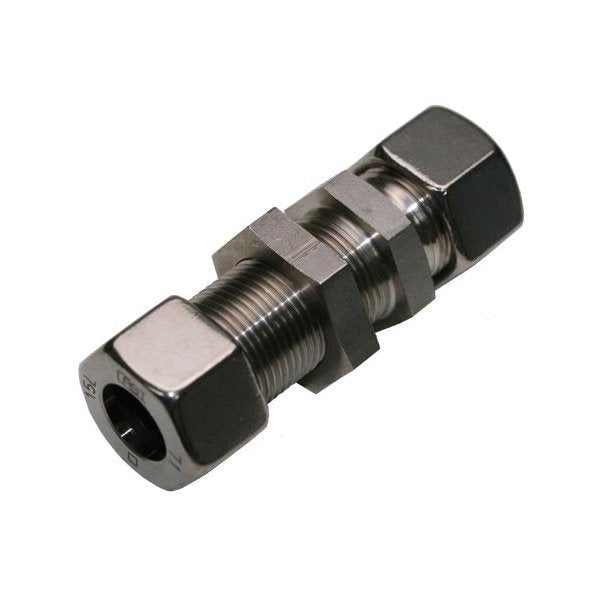

Stainless Steel Bulkhead Union with Equipped B3 Ring - DIN 2353 Compression Fittings

Name: Stainless Steel Bulkhead Union with Equipped B3 Ring - DIN 2353 Compression Fittings
Brand: World Wide Metric, Inc.
SKU: FIT-75bc9a
Price: 45.99 USD
Availability: OutOfStock

SKU:FIT-75bc9a

Premium stainless steel bulkhead union for light duty applications, DIN 2353 compliant

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

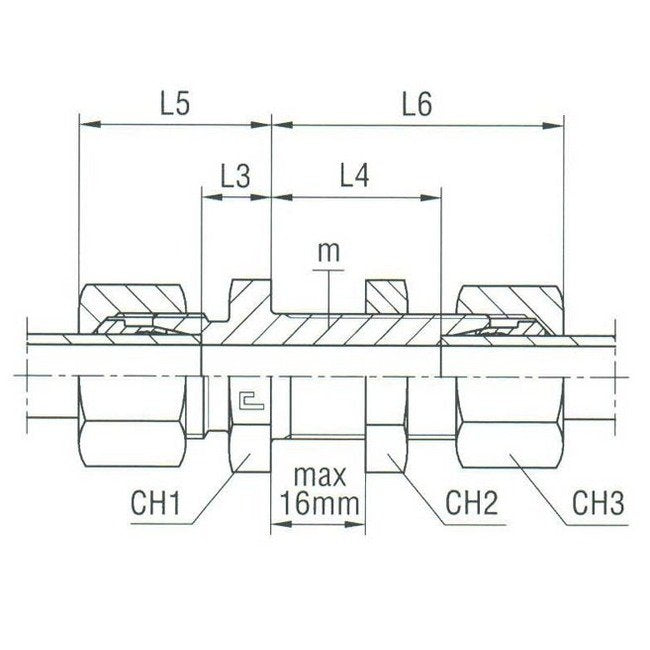

The Stainless Steel Bulkhead Union with Equipped B3 Ring is designed for light duty applications, featuring a sturdy construction and precise measurements including a 42.0mm tube diameter and 52x2 thread size. With a nominal operating pressure of 160 bar and complying with DIN 2353 standards, this bulkhead connection ensures reliable performance in various industrial settings. Its compact design with dimensions of L3: 19.0mm, L4: 36mm, L5: 42mm, L6: 59mm, CH1: 60mm, CH2: 65mm, and CH3: 60mm makes installation and maintenance hassle-free.

Product Specifications

Specifications Ch1

60 mm

Specifications Ch2

65 mm

Specifications Ch3

60 mm

Specifications L3

19.0 mm

Specifications L4

36 mm

Specifications L5

42 mm

Specifications L6

59 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

52x2

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

42.0 mm
