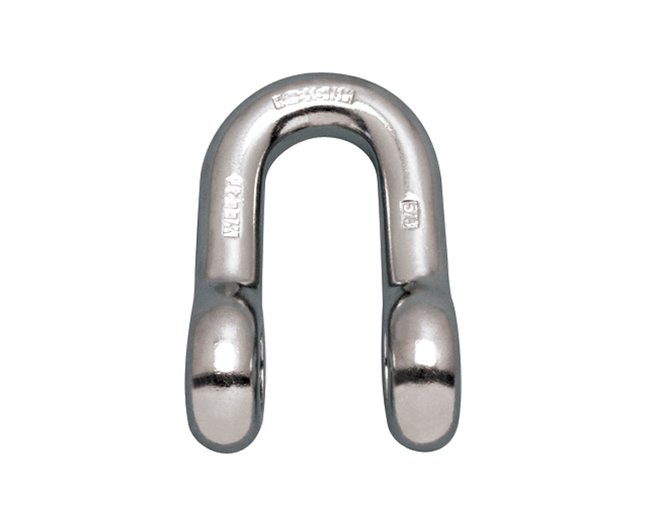

Stainless Steel Chain Shackle Body - Suncor 316-NM, 8,000 lb WLL

Stainless Steel Chain Shackle Body - Suncor 316-NM, 8,000 lb WLL

SKU:STA-025687

Premium Stainless Steel Chain Shackle Body by Suncor, 316 stainless steel, 8,000 lb WLL, ideal for industrial applications.

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

Stainless Steel Chain Shackle Body - Suncor 316-NM, 8,000 lb WLL

Stainless Steel Chain Shackle Body - Suncor 316-NM, 8,000 lb WLL

$39.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Chain Shackle Body - Suncor 316-NM, 8,000 lb WLL

Stainless Steel Chain Shackle Body - Suncor 316-NM, 8,000 lb WLL

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Chain Shackle Body by Suncor is a premium unthreaded component with precise fractional ton marking for secure lifting operations. Crafted from grade 316-NM stainless steel through drop forging, this shackle body offers exceptional strength and durability. Available in sizes ranging from 1/4" to 1", it seamlessly integrates as a replacement part and pairs perfectly with the Shackle Bolt. With a Working Load Limit (WLL) of 8,000 lb, this Suncor-exclusive product guarantees safety and reliability in various industrial applications.

Product Specifications

Specifications Dimension A
7/8 in
Specifications Dimension B
1.02 in
Specifications Dimension C
1.44 in
Specifications Dimension D
5.28 in
Specifications Dimension X
1.93 in
Specifications Dimension Y
5.21 in
Specifications Dimension Z
3.18 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Weight
2.03 lb
Specifications Working Load Limit Wll
8,000 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
