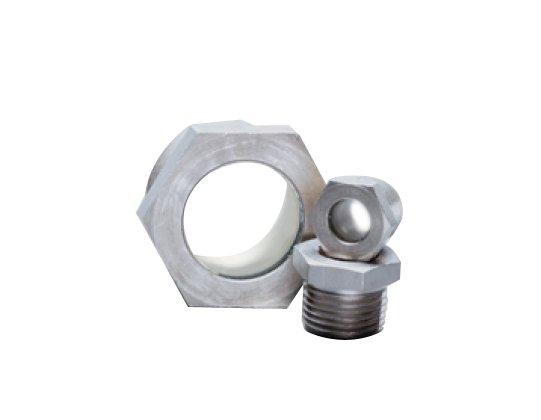

Stainless Steel Clear Threaded Sight Glass Window - 2" NPT
Stainless Steel Clear Threaded Sight Glass Window - 2" NPT
SKU:SIG-fe70c3
Durable Stainless Steel Sight Glass Window for industrial liquid level monitoring. 250 psi, 400°F max temp.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Clear Threaded Sight Glass Window - 2" NPT
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Clear Threaded Sight Glass Window - 2" NPT
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Clear Threaded Sight Glass Window is an essential component for corrosive or hazardous liquid level monitoring in various industrial applications. Crafted from durable 303 stainless steel, this sight glass boasts a lens diameter of 1.875 inches, a maximum design pressure of 250 psi, and a maximum temperature resistance of 400°F. With a hermetically sealed construction, it ensures reliability and safety in power transmissions, gear boxes, reservoirs, and pumps. Designed to meet the highest standards for quality and performance, this threaded sight glass window is a cost-effective solution for institutional and government procurement needs.
Product Specifications
Note For Design Pressure 0
Actual working pressure to which these units are subjected should be chosen by the user to assure a proper margin of safety.
Specifications Hex Size
2 1/2 in
Specifications Hex Thickness
13/32 in
Specifications Length
1 9/32 in
Specifications Lens Diameter
1.875 in
Specifications Material
303 Stainless Steel
Specifications Maximum Design Pressure
250 psi
Specifications Maximum Temperature
400 ºF
Specifications Thread Size Npt
2 - 11.5
