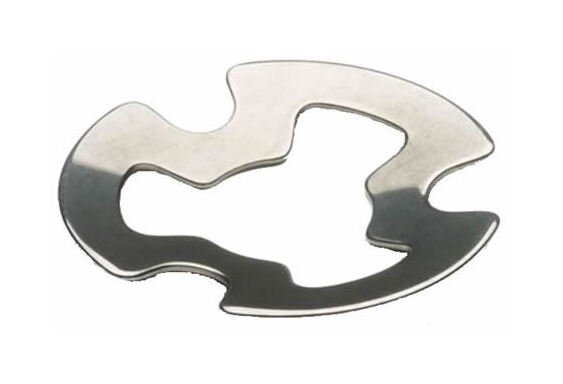

Stainless Steel Clover Dome Spring
Stainless Steel Clover Dome Spring
SKU:SPR-b401a8
Innovative Stainless Steel Clover Dome Spring for increased travel and superior durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Clover Dome Spring
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Clover Dome Spring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your applications with increased travel capability using our innovative Stainless Steel Clover Dome Spring. Unlike traditional springs, our Clover Dome design allows for greater deflection, offering enhanced performance. Crafted from 17-7 PH Stainless Steel per AMS-5529, these springs ensure superior corrosion protection and durability. Our engineered solutions enable customized designs for varied loading profiles and material preferences, exemplified in our Industrial Valve case study.
Product Specifications
Specifications Country Of Origin
-
Specifications Depth
0.031 in
Specifications Free Height Approx In
0.031 in
Specifications Height
0.375 in
Specifications Loaded Height In
0.015 in
Specifications Material
17-7 PH Stainless Steel, AMS-5529 (Chemical)
Specifications Maximum Od In
0.375 in
Specifications Minimum Id In
0.195 in
Specifications Nominal Spring Rate Lbsin
850 lbs/in
Specifications Thickness In
0.010 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.000285 pounds
Specifications Width
0.031 in
