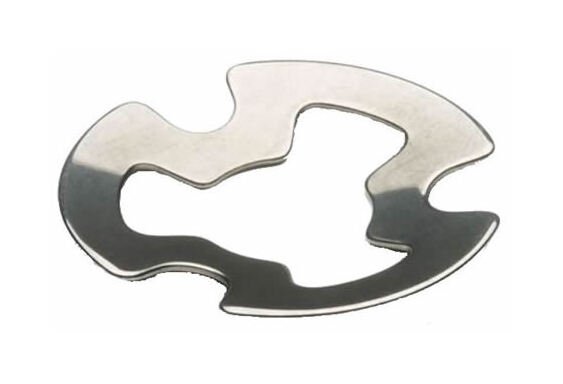

Stainless Steel Clover Dome Spring
Stainless Steel Clover Dome Spring
SKU:SPR-fd9a04
High-quality Stainless Steel Clover Dome Spring providing superior deflection and durability for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Clover Dome Spring
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Clover Dome Spring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Clover Dome Spring offers superior deflection capabilities compared to traditional springs, making it ideal for a wide range of applications. Crafted from high-quality 17-7 PH Stainless Steel per AMS-5529 standards, this spring provides exceptional corrosion resistance and durability. With precise dimensions and a unique Clover Dome geometry, this spring ensures increased travel and reliability in demanding environments. Our Engineered Solution Services also offer custom design options for specific loading profiles and material requirements, guaranteeing tailored solutions for your needs.
Product Specifications
Specifications Country Of Origin
-
Specifications Depth
0.038 in
Specifications Free Height Approx In
0.038 in
Specifications Height
0.313 in
Specifications Loaded Height In
0.023 in
Specifications Material
17-7 PH Stainless Steel, AMS-5529 (Chemical)
Specifications Maximum Od In
0.312 in
Specifications Minimum Id In
0.143 in
Specifications Nominal Spring Rate Lbsin
3720 lbs/in
Specifications Thickness In
0.018 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.000394 pounds
Specifications Width
0.038 in
