Stainless Steel Clover Dome Spring
Stainless Steel Clover Dome Spring
SKU:SPR-f8e5da
Enhanced deflection Stainless Steel spring for increased travel and durability. Nominal spring rate of 7388 lbs/in.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Clover Dome Spring
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Clover Dome Spring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

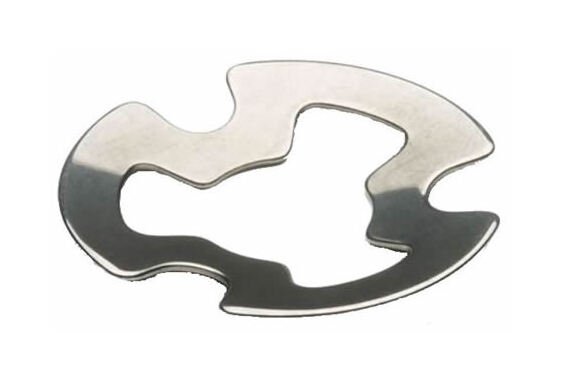

The Stainless Steel Clover Dome Spring offers enhanced deflection capabilities compared to traditional springs, making it ideal for applications requiring increased travel. Crafted from 17-7 PH Stainless Steel per AMS-5529, these springs ensure superior corrosion protection and durability. With dimensions conforming to precise standards and a nominal spring rate of 7388 lbs/in, this spring guarantees reliable performance. Explore our Engineered Solution Services for custom loading profiles and material options. Discover the versatility and resilience of the Stainless Steel Clover Dome Spring today.
Product Specifications
Specifications Country Of Origin
-
Specifications Depth
0.100 in
Specifications Free Height Approx In
0.100 in
Specifications Height
1.00 in
Specifications Loaded Height In
0.057 in
Specifications Material
17-7 PH Stainless Steel, AMS-5529 (Chemical)
Specifications Maximum Od In
1.000 in
Specifications Minimum Id In
0.505 in
Specifications Nominal Spring Rate Lbsin
7388 lbs/in
Specifications Thickness In
0.043 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.008946 pounds
Specifications Width
0.100 in
