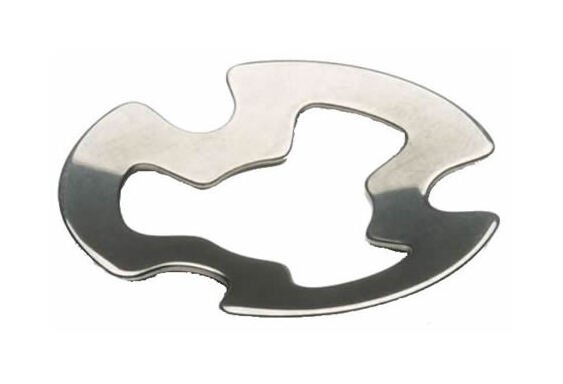

Stainless Steel Clover Dome Spring
Stainless Steel Clover Dome Spring
SKU:SPR-b10a73
Increase travel and deflection with our durable Stainless Steel Clover Dome Spring, ideal for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Clover Dome Spring
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Clover Dome Spring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your applications with our Stainless Steel Clover Dome Spring designed for increased travel and deflection. Crafted from 17-7 PH Stainless Steel per AMS-5529, ensuring superior corrosion protection and durability. Experience a unique design tailored for additional loading profiles and material types through our Engineered Solution Services.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Country Of Origin
-
Specifications Depth
0.032 in
Specifications Free Height Approx In
0.032 in
Specifications Height
0.313 in
Specifications Loaded Height In
0.017 in
Specifications Material
17-7 PH Stainless Steel, AMS-5529 (Chemical)
Specifications Maximum Od In
0.312 in
Specifications Minimum Id In
0.143 in
Specifications Nominal Spring Rate Lbsin
1527 lbs/in
Specifications Thickness In
0.012 in
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.000263 pounds
Specifications Width
0.032 in
