Stainless Steel Combi Hinges 20 - Industrial-Grade, All Electronics Hardware
Stainless Steel Combi Hinges 20 - Industrial-Grade, All Electronics Hardware
SKU:IND-d8eb2e
Durable Stainless Steel Combi Hinges 20, ideal for industrial panel hinging, with maximum 700 N load capacity.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Combi Hinges 20 - Industrial-Grade, All Electronics Hardware
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Combi Hinges 20 - Industrial-Grade, All Electronics Hardware
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

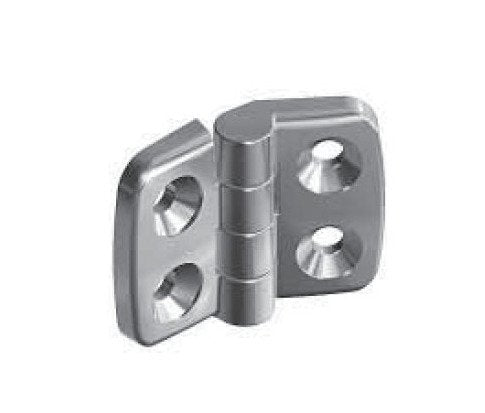

The Stainless Steel Combi Hinges 20 by All Electronics Hardware are meticulously engineered for industrial applications, offering exceptional strength and durability. Crafted from premium Stainless Steel (316SS) with Stainless Steel SS430 F bolts, these hinges provide optimum resistance to corrosion and wear, ensuring long-lasting performance in challenging environments. The polished surface finish not only enhances aesthetics but also offers added protection. With a maximum load capacity of 700 N, these hinges are ideal for securely hinging heavy panels. Countersunk screws enable easy and secure fastening from the front, delivering convenient installation and maintenance. Upgrade to these reliable hinges for superior panel hinging solutions that meet the stringent demands of industrial environments.
Product Specifications
Specifications Bolt Material
Stainless Steel SS430 F

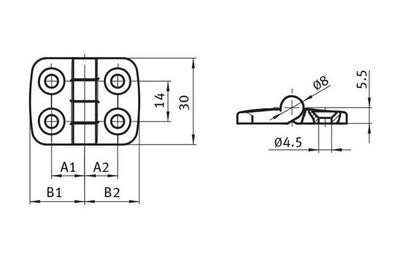

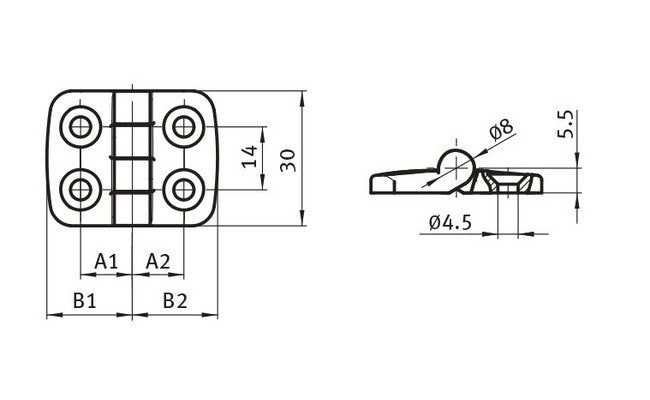

Specifications Dimension A1
11.5 mm
Specifications Dimension A2
11.5 mm
Specifications Dimension B1
19.0 mm
Specifications Dimension B2
19.0 mm
Specifications Fastening
From the front, using M4 countersunk screws
Specifications Material
Stainless Steel (316SS)
Specifications Maximum Fa
40 N
Specifications Maximum Fr
700 N
Specifications Surface Finish
Polished
