Stainless Steel Combination Rupture Disc / Needle Valves
Stainless Steel Combination Rupture Disc / Needle Valves
SKU:ACC-3ea4c9
Compact and durable Stainless Steel Valve for reliable performance in critical systems.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Stainless Steel Combination Rupture Disc / Needle Valves
$129.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Combination Rupture Disc / Needle Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

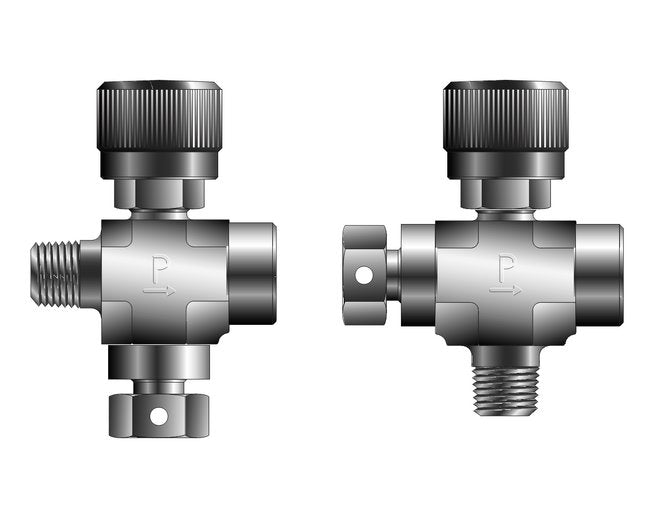

The Stainless Steel Combination Rupture Disc / Needle Valves offer a compact solution by combining the V4LC Series valve with the RV Series rupture disc unit. Constructed with durable stainless steel and featuring tapered bore PTFE packing, K stem with PCTFE stem tip, and a knurled aluminum handle, this valve ensures reliable performance. Available in both inline and angle patterns, with optional stem packings, it provides versatility and efficiency for various applications. Compliant with Federal procurement standards and industry certifications, these valves meet the rigorous demands of institutional buyers seeking high-quality components for critical systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

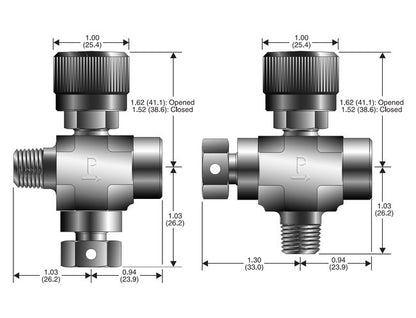

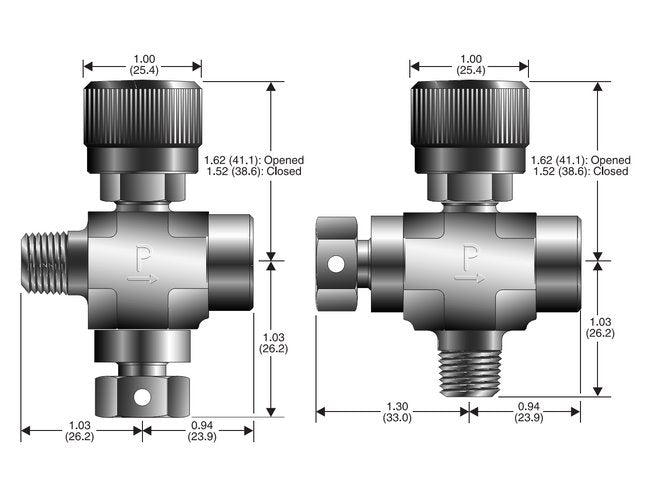

Dimensions A
1.03 in
Dimensions B
.94 in
Dimensions C
1.30 in
Dimensions D
1.52 in
Dimensions Inlet
1/4" Male NPT
Dimensions Outlet
1/4" Female NPT
Specifications Features
Combines the V4LC Series valve and the RV Series rupture disc unit into a small package. ?Stainless steel construction. ?Tapered bore PTFE packing. ?K stem (PCTFE stem tip). ?Knurled aluminum handle. ?Inline and angle patterns. ?Optional stem packings.
