Stainless Steel Combination Rupture Disc / Needle Valves
Stainless Steel Combination Rupture Disc / Needle Valves
SKU:ACC-d66aef
Compact yet powerful stainless steel valves for precise control and pressure relief in industrial, government, and institutional applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Stainless Steel Combination Rupture Disc / Needle Valves
$129.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Combination Rupture Disc / Needle Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

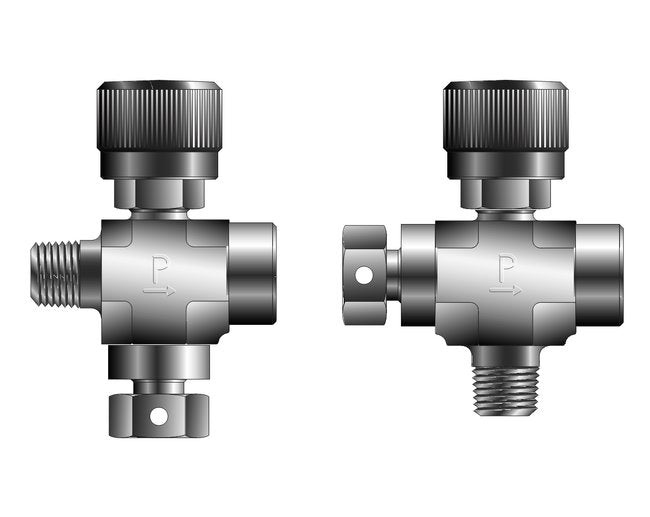

The Stainless Steel Combination Rupture Disc / Needle Valves from the RV6C Series offer a compact solution by combining the V4LC Series valve with the RV Series rupture disc unit. Constructed from durable stainless steel, these valves feature a tapered bore PTFE packing, a K stem with PCTFE stem tip, and a knurled aluminum handle. Available in both inline and angle patterns with optional stem packings, these valves provide reliable performance and easy operation. Ideal for applications requiring precision control and pressure relief, these valves meet stringent quality standards for industrial, governmental, and institutional use.
Ready to Grow Without Cash Flow Constraints?

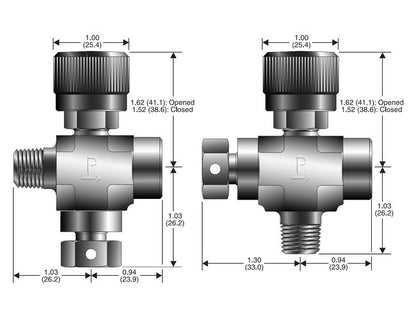

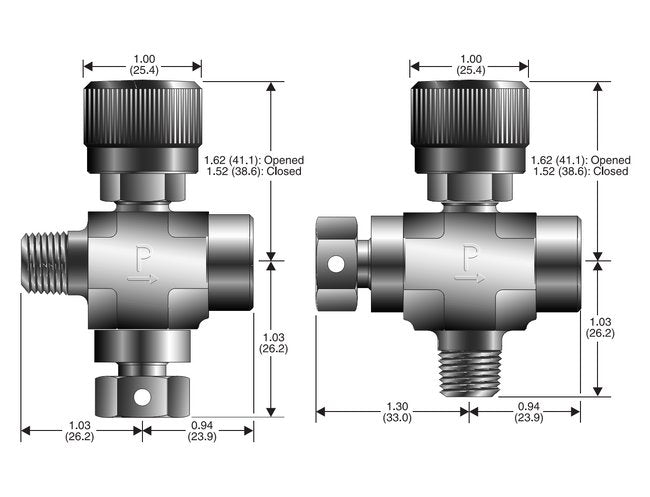

Product Specifications
Dimensions A
1.03 in
Dimensions B
.94 in
Dimensions C
1.30 in
Dimensions D
1.52 in
Dimensions Inlet
1/4" Male NPT
Dimensions Outlet
1/4" Female NPT
Specifications Features
Combines the V4LC Series valve and the RV Series rupture disc unit into a small package. ?Stainless steel construction. ?Tapered bore PTFE packing. ?K stem (PCTFE stem tip). ?Knurled aluminum handle. ?Inline and angle patterns. ?Optional stem packings.
