Stainless Steel Combination Rupture Disc/Needle Valves
Stainless Steel Combination Rupture Disc/Needle Valves
SKU:ACC-d99004
Enhanced safety and efficiency in a small package with stainless steel construction and versatile design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Combination Rupture Disc/Needle Valves
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Combination Rupture Disc/Needle Valves
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

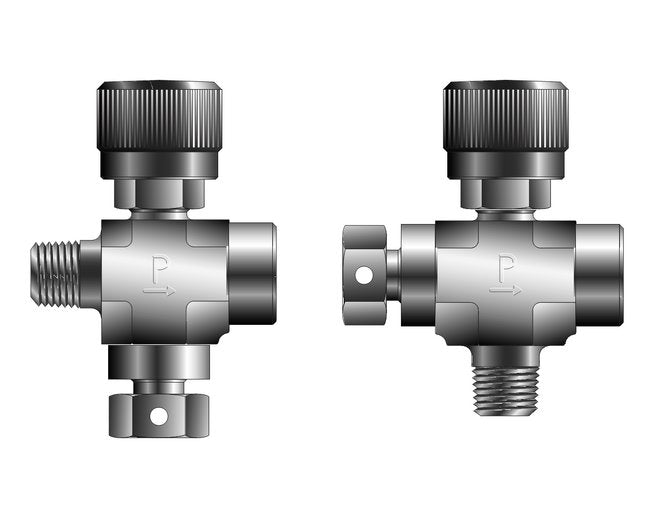

Experience unparalleled safety and efficiency with our Stainless Steel Combination Rupture Disc/Needle Valves. Combining the V4LC Series valve and RV Series rupture disc unit, this product features stainless steel construction, tapered bore PTFE packing, K stem with PCTFE stem tip, knurled aluminum handle, and inline/angle patterns. Optional stem packings enhance its versatility. Designed for reliability in demanding environments, this valve meets Federal/DoD procurement standards and FAR compliance factors, ensuring quality and performance that exceed industry expectations.
Ready to Grow Without Cash Flow Constraints?

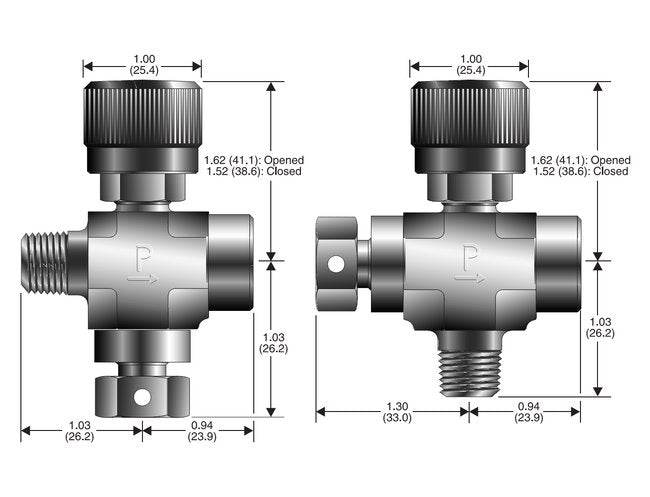

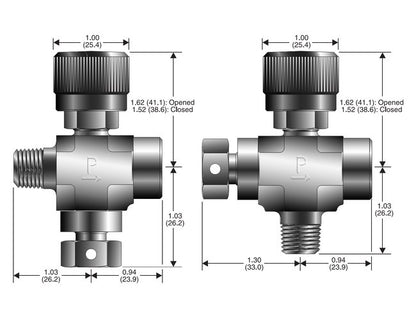

Product Specifications
Dimensions A
1.03 in
Dimensions B
.94 in
Dimensions C
1.30 in
Dimensions D
1.52 in
Dimensions Inlet
1/4" Male NPT
Dimensions Outlet
1/4" Female NPT
Specifications Features
Combines the V4LC Series valve and the RV Series rupture disc unit into a small package. ?Stainless steel construction. ?Tapered bore PTFE packing. ?K stem (PCTFE stem tip). ?Knurled aluminum handle. ?Inline and angle patterns. ?Optional stem packings.
