Stainless Steel Combination Rupture Disc / Needle Valves
Stainless Steel Combination Rupture Disc / Needle Valves
SKU:ACC-91deac
Compact & durable Stainless Steel Comb. Rupture Disc / Needle Valves for reliable performance in critical applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Stainless Steel Combination Rupture Disc / Needle Valves
$89.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Combination Rupture Disc / Needle Valves
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

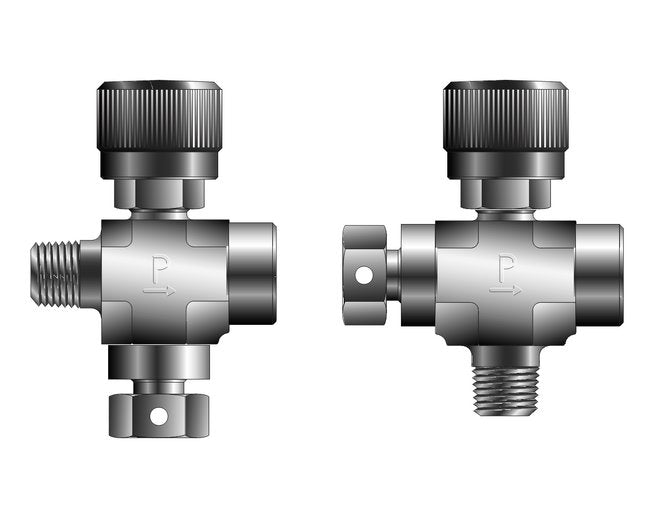

The Stainless Steel Combination Rupture Disc / Needle Valves offer a compact solution by combining the V4LC Series valve with the RV Series rupture disc unit. Crafted with durable stainless steel and featuring a tapered bore PTFE packing, these valves ensure reliable performance. The K stem with PCTFE stem tip, knurled aluminum handle, and optional stem packings provide versatility. Designed in inline and angle patterns, these valves meet stringent industry standards for quality and durability, making them ideal for critical applications in various sectors.
Ready to Grow Without Cash Flow Constraints?

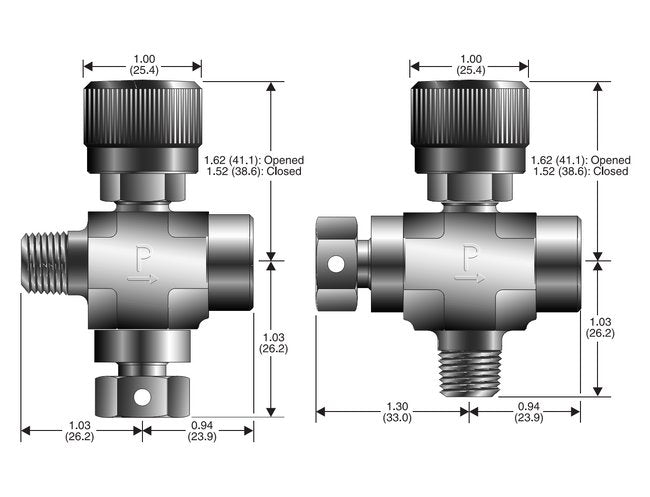

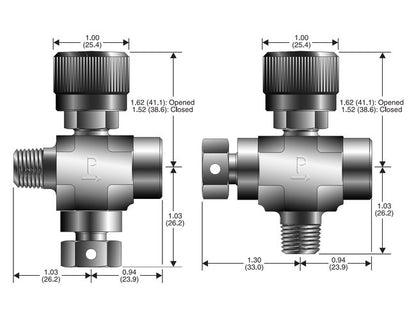

Product Specifications
Dimensions A
1.03 in
Dimensions B
.94 in
Dimensions C
1.30 in
Dimensions D
1.52 in
Dimensions Inlet
1/4" Male NPT
Dimensions Outlet
1/4" Female NPT
Specifications Features
Combines the V4LC Series valve and the RV Series rupture disc unit into a small package. ?Stainless steel construction. ?Tapered bore PTFE packing. ?K stem (PCTFE stem tip). ?Knurled aluminum handle. ?Inline and angle patterns. ?Optional stem packings.
