Stainless Steel Combination Rupture Disc / Needle Valves RV6C
Stainless Steel Combination Rupture Disc / Needle Valves RV6C
SKU:ACC-32d8c7
Precision-engineered Stainless Steel Valve with Rupture Disc for optimal flow control and pressure relief.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Stainless Steel Combination Rupture Disc / Needle Valves RV6C
$149.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Combination Rupture Disc / Needle Valves RV6C
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

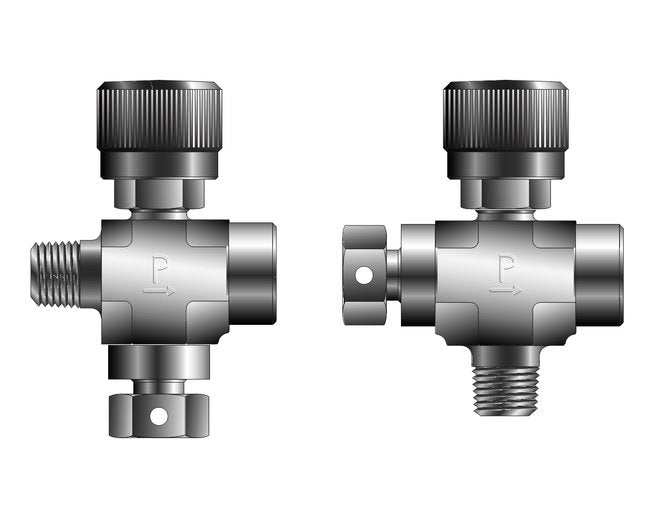

The Stainless Steel Combination Rupture Disc / Needle Valves RV6C Series deliver optimal pressure relief and precise flow control in a compact design. Constructed from durable stainless steel with a tapered bore PTFE packing, these valves combine the functionality of the V4LC Series valve and the RV Series rupture disc unit. Featuring a K stem with a PCTFE stem tip, knurled aluminum handle, and options for stem packings, these valves offer versatility in both inline and angle patterns. Ideal for industrial applications requiring reliable performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

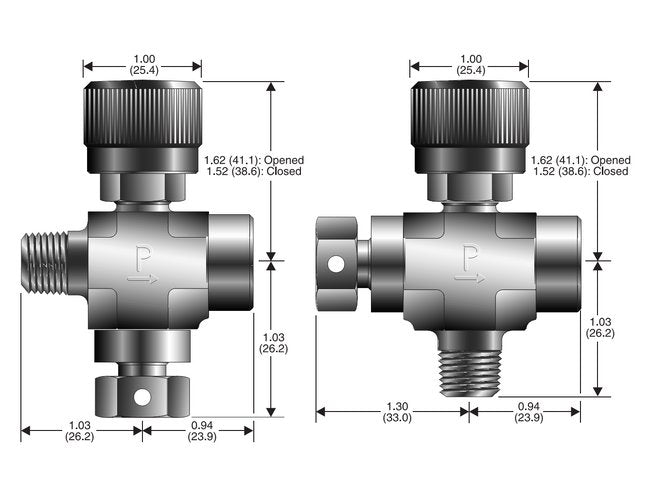

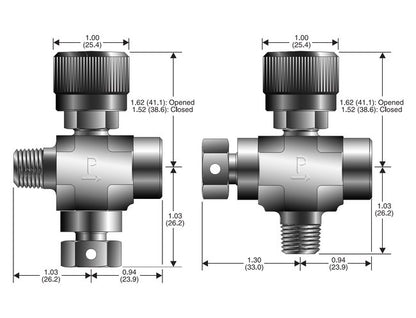

Dimensions A
1.03 in
Dimensions B
.94 in
Dimensions C
1.30 in
Dimensions D
1.52 in
Dimensions Inlet
1/4" Male NPT
Dimensions Outlet
1/4" Female NPT
Specifications Features
Combines the V4LC Series valve and the RV Series rupture disc unit into a small package. ?Stainless steel construction. ?Tapered bore PTFE packing. ?K stem (PCTFE stem tip). ?Knurled aluminum handle. ?Inline and angle patterns. ?Optional stem packings.
