Stainless Steel Combination Rupture Disc / Needle Valves - RV6C Series
Stainless Steel Combination Rupture Disc / Needle Valves - RV6C Series
SKU:ACC-0de014
Premium stainless steel valves for precise control and durability. Ideal for high-pressure applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Stainless Steel Combination Rupture Disc / Needle Valves - RV6C Series
$99.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Combination Rupture Disc / Needle Valves - RV6C Series
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

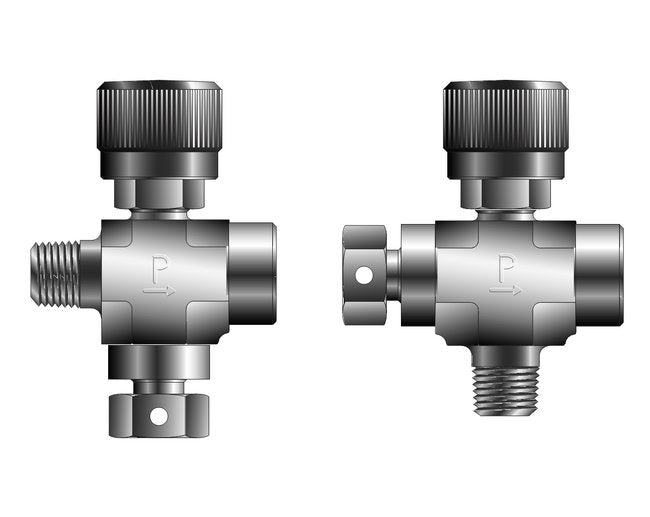

The Stainless Steel Combination Rupture Disc / Needle Valves from the RV6C Series offer a compact yet powerful solution, combining the precision of the V4LC Series valve with the reliability of the RV Series rupture disc unit. Crafted from durable stainless steel, these valves feature a tapered bore PTFE packing, K stem with PCTFE stem tip, and a knurled aluminum handle for easy operation. Available in both inline and angle patterns, with optional stem packings, these valves are designed to withstand high-pressure environments while ensuring precise control and efficient flow management.
Ready to Grow Without Cash Flow Constraints?

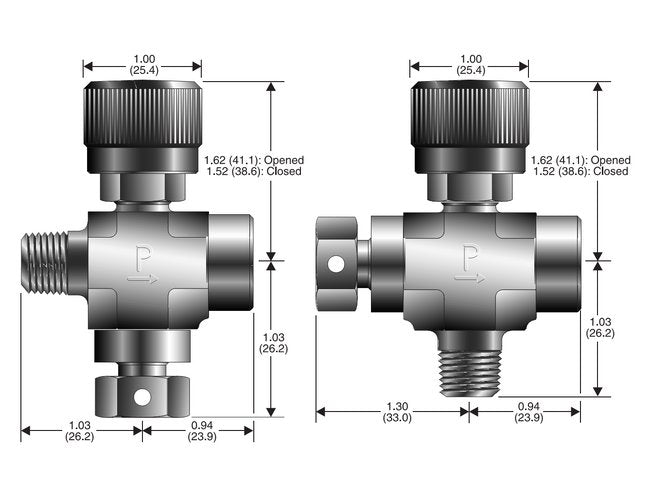

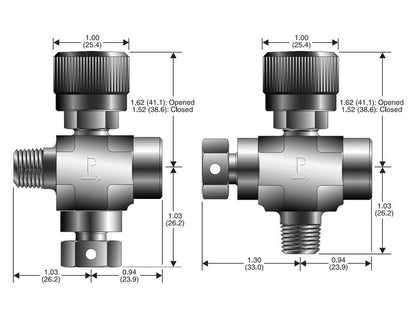

Product Specifications
Dimensions A
1.03 in
Dimensions B
.94 in
Dimensions C
1.30 in
Dimensions D
1.52 in
Dimensions Inlet
1/4" Male NPT
Dimensions Outlet
1/4" Female NPT
Specifications Features
Combines the V4LC Series valve and the RV Series rupture disc unit into a small package. ?Stainless steel construction. ?Tapered bore PTFE packing. ?K stem (PCTFE stem tip). ?Knurled aluminum handle. ?Inline and angle patterns. ?Optional stem packings.
