Stainless Steel Control Head Cable

Name: Stainless Steel Control Head Cable
Brand: Lexco Cable Manufacturing
SKU: PUS-4e8786
Price: 29.99 USD
Availability: OutOfStock

SKU:PUS-4e8786

Precision-engineered stainless steel control cable for precise control applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

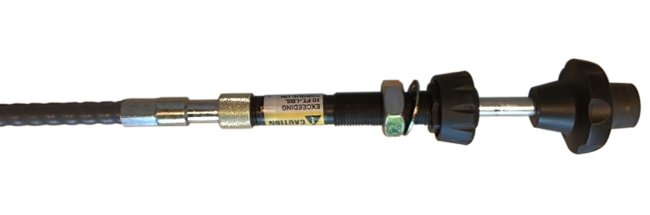

The Stainless Steel Control Head Cable is a versatile solution designed for precision control applications. Featuring a trim-to-length design with a stainless steel solid wire innermember, this cable offers up to 3" travel, a 5" minimum bend radius, and a robust 20 lb pull load rating. With options for micro-adjust control head type, utility conduit, and various seal choices, this cable ensures reliable performance in a wide range of settings.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Very Light Duty

Specifications Conduit Type

Utility

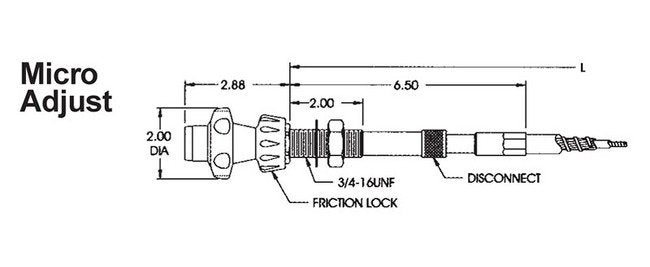

Specifications Control Head Type

Micro Adjust

Specifications Micro Adjust Only Cable Options

D - Disconnect Feature | F - Friction Lock Accessory

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Stainless Steel End Rod

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Control Head Cable
