Stainless Steel Control Head Cable

Name: Stainless Steel Control Head Cable
Brand: Lexco Cable Manufacturing
SKU: PUS-ad6789
Price: 39.99 USD
Availability: OutOfStock

SKU:PUS-ad6789

Durable stainless steel control cable for precise push-pull operations, customizable and reliable.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

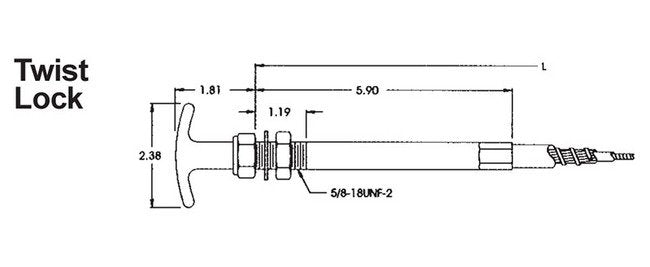

The Stainless Steel Control Head Cable is a factory-assembled, trim-to-length cable with a stainless steel solid wire innermember. Featuring a Twist Lock control head with a 2.38" Plastic Handle, this cable offers smooth operation with up to 3" travel, a 5" minimum bend radius, and a 20 lb pull load rating. With options for stainless steel end rod and support tube, various output end fittings, and seal options, this cable provides durability, flexibility, and optimal performance in push-pull control applications.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Light Duty

Specifications Conduit Type

Utility

Specifications Control Head Type

Twist Lock with 2.38 Plastic Handle

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Stainless Steel End Rod, Support Tube

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Control Head Cable
