Stainless Steel Control Head Cable

Name: Stainless Steel Control Head Cable
Brand: Lexco Cable Manufacturing
SKU: PUS-9976a7
Price: 29.99 USD
Availability: OutOfStock

SKU:PUS-9976a7

Premium stainless steel control cable for precise and reliable control in various applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Control Head Cable is a premium solution designed for precise control needs in various applications. It comes factory assembled, allowing for easy trimming to the desired length. Featuring a stainless steel solid wire innermember, this cable offers up to 3" travel, 5" minimum bend radius, and a robust 20 lb pull load rating. With options like different seal choices, cable travels, and knob variations, this control head cable provides versatility and reliability for your control requirements.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Light Duty

Specifications Conduit Type

Utility

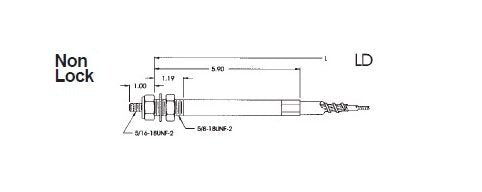

Specifications Control Head Type

Non-Locking with 3/8-24 UNF Mounting

Specifications Knob Option

013 | 018 | 203

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Stainless Steel End Rod, Support Tube
