Stainless Steel Control Head Cable Assembly

Name: Stainless Steel Control Head Cable Assembly
Brand: Lexco Cable Manufacturing
SKU: PUS-92b30f
Price: 39.99 USD
Availability: OutOfStock

SKU:PUS-92b30f

High-quality stainless steel control cable assembly designed for precision and durability.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

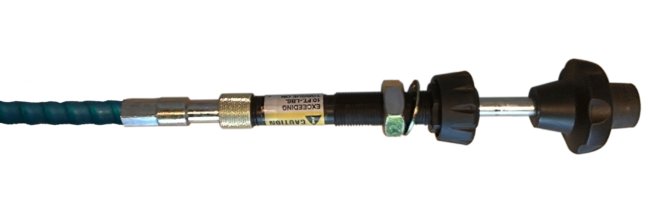

The Stainless Steel Control Head Cable Assembly is meticulously crafted for precision and durability. This factory-assembled cable features a trim-to-length design with a stainless steel solid wire innermember, offering up to 3" travel and a 20 lb pull load rating. With a minimum bend radius of 5", this cable ensures smooth operation and longevity. Choose from various Control Head Types, Conduit Types, and Seal Options to meet your specific needs, making it ideal for demanding industrial environments and applications that require reliable push-pull controls.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Very Light Duty

Specifications Conduit Type

Low Friction-EXT

Specifications Control Head Type

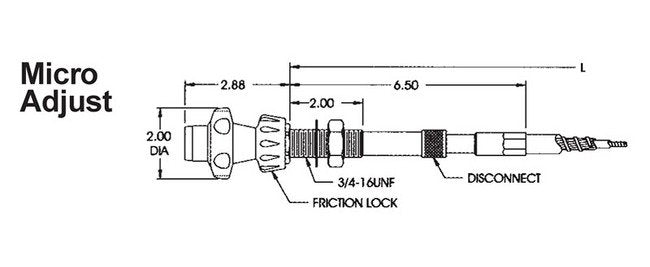

Micro Adjust

Specifications Micro Adjust Only Cable Options

D - Disconnect Feature | F - Friction Lock Accessory

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Stainless Steel End Rod

CAGE

0T9L4

NAICS

332510

PSC

4030
