Stainless Steel Control Head Cable Assembly

Name: Stainless Steel Control Head Cable Assembly
Brand: Lexco Cable Manufacturing
SKU: PUS-a9af1f
Price: 39.99 USD
Availability: OutOfStock

SKU:PUS-a9af1f

Premium stainless steel control cable with adjustable travel length and durable construction.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Control Head Cable Assembly is meticulously factory assembled and custom-trimmed to length, featuring a robust stainless steel solid wire innermember. With a 3" travel capacity, 5" minimum bend radius, and a 20 lb pull load rating, this cable offers precise and reliable control. It includes a Twist Lock with 3.5 Metal Handle for ergonomic operation, various conduit and fitting options, and seal enhancements for extended durability. Ideal for applications requiring high-performance push-pull controls.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Very Light Duty

Specifications Conduit Type

Commercial

Specifications Control Head Type

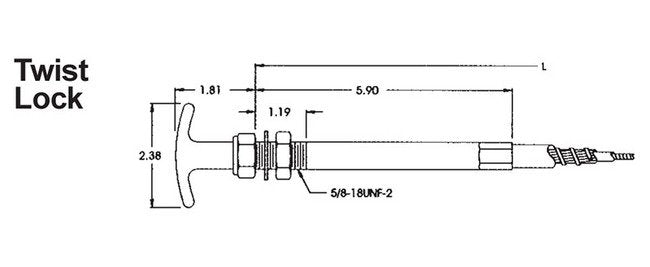

Twist Lock with 3.5 Metal Handle

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Carbon Steel Fittings

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Control Head Cable Assembly
