Stainless Steel Control Head Cable Assembly

Name: Stainless Steel Control Head Cable Assembly
Brand: Lexco Cable Manufacturing
SKU: PUS-522dfb
Price: 49.99 USD
Availability: OutOfStock

SKU:PUS-522dfb

Durable stainless steel control cable with customizable options for precise control in push-pull systems.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Control Head Cable Assembly is a durable and reliable solution for precise control applications. This factory-assembled cable features a trim-to-length design with a stainless steel solid wire innermember, ensuring up to 3" travel, 5" minimum bend radius, and a 20 lb pull load rating. With options like non-locking control head type, utility conduit, and various seal options, this cable assembly offers versatile customization to meet specific needs. Ideal for push-pull control systems, this cable assembly combines quality construction with smooth operation for lasting performance.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Very Light Duty

Specifications Conduit Type

Utility

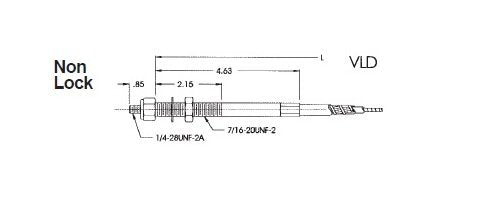

Specifications Control Head Type

Non-Locking with 7/16-20 UNF Mounting

Specifications Knob Option

008 | 014 | 016 | 020 | 202 | 308 | 314 | 321 | 324 | 326

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Stainless Steel End Rod

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Control Head Cable Assembly
