Stainless Steel Control Head Cable Assembly

Name: Stainless Steel Control Head Cable Assembly
Brand: Lexco Cable Manufacturing
SKU: PUS-e83c8f
Price: 29.99 USD
Availability: OutOfStock

SKU:PUS-e83c8f

High-quality stainless steel control cable designed for precision and durability in diverse applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

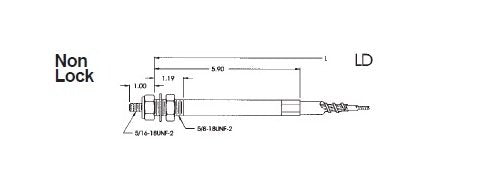

The Stainless Steel Control Head Cable Assembly is factory assembled, featuring a trim-to-length design with a stainless steel solid wire innermember. With a 3" cable travel, 5" minimum bend radius, and a robust 20 lb pull load rating, this cable assembly offers precise control. It comes with various output end fittings options and seal choices for enhanced performance and durability. The Control Head Cable is designed for non-locking applications and is compatible with 3/8-24 UNF mounting, ensuring reliability and ease of use.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Light Duty

Specifications Conduit Type

Low Friction

Specifications Control Head Type

Non-Locking with 3/8-24 UNF Mounting

Specifications Knob Option

013 | 018 | 203

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Carbon Steel Fittings

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Control Head Cable Assembly
