Stainless Steel Control Head Cable Assembly

Name: Stainless Steel Control Head Cable Assembly
Brand: Lexco Cable Manufacturing
SKU: PUS-794ad2
Price: 29.99 USD
Availability: OutOfStock

SKU:PUS-794ad2

Precision control with stainless steel innermember, 3" travel, and 20 lb pull load. Versatile design for commercial use.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Control Head Cable Assembly is a versatile solution for precise control applications, featuring a factory-assembled design with a trim-to-length option. Crafted with a stainless steel solid wire innermember, this cable offers up to 3" travel, a 5" minimum bend radius, and a 20 lb pull load rating. With a non-locking control head type and various conduit and fittings options, this cable assembly ensures reliable performance in demanding environments.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Light Duty

Specifications Conduit Type

Commercial

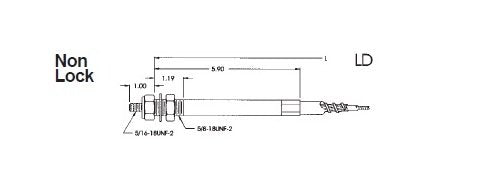

Specifications Control Head Type

Non-Locking with 7/16-20 UNF Mounting

Specifications Knob Option

013 | 018 | 203

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Carbon Steel Fittings

CAGE

0T9L4

NAICS

332510

PSC

4030
