Stainless Steel Control Head Cable Assembly

Name: Stainless Steel Control Head Cable Assembly
Brand: Lexco Cable Manufacturing
SKU: PUS-d4e285
Price: 39.99 USD
Availability: OutOfStock

SKU:PUS-d4e285

Precision-engineered stainless steel cable assembly, twist lock design, 3" travel, 20 lb pull load rating.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Control Head Cable Assembly is a versatile solution for precise control applications. Featuring a twist lock design with a durable plastic handle, this cable offers up to 3" travel, a 5" minimum bend radius, and a 20 lb pull load rating. With factory assembly and trim-to-length capability, it includes a stainless steel solid wire innermember for enhanced durability and performance. Choose from various output end fittings and seal options to customize based on your specific needs.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Light Duty

Specifications Conduit Type

Commercial

Specifications Control Head Type

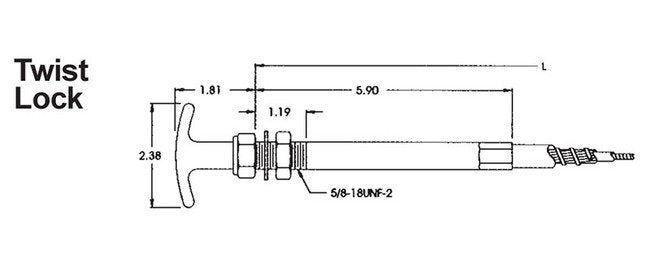

Twist Lock with 2.38 Plastic Handle

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Stainless Steel End Rod, Support Tube

CAGE

0T9L4

NAICS

332510

PSC

4030
