Stainless Steel Control Head Cable Assembly

Name: Stainless Steel Control Head Cable Assembly
Brand: Lexco Cable Manufacturing
SKU: PUS-63501d
Price: 34.99 USD
Availability: OutOfStock

SKU:PUS-63501d

Premium stainless steel control cable assembly with precision engineering for up to 3" travel and 20 lb pull load. Customizable length for optimal fit.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Control Head Cable Assembly is meticulously factory-assembled and trimmable to customize the length precisely. Crafted with a durable stainless steel solid wire inner member, this cable offers up to 3" travel, a 5" minimum bend radius, and a robust 20 lb pull load rating. With a non-locking control head type and versatile conduit options, including very light-duty utility conduit, this cable assembly ensures smooth operation and precise control in various applications. Choose from a range of output end fittings and seal options for enhanced performance and longevity.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Very Light Duty

Specifications Conduit Type

Utility

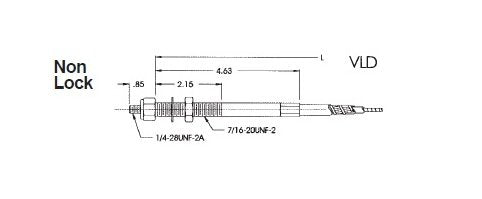

Specifications Control Head Type

Non-Locking with 3/8-24 UNF Mounting

Specifications Knob Option

008 | 014 | 016 | 020 | 202 | 308 | 314 | 321 | 324 | 326

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Stainless Steel End Rod

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Control Head Cable Assembly
