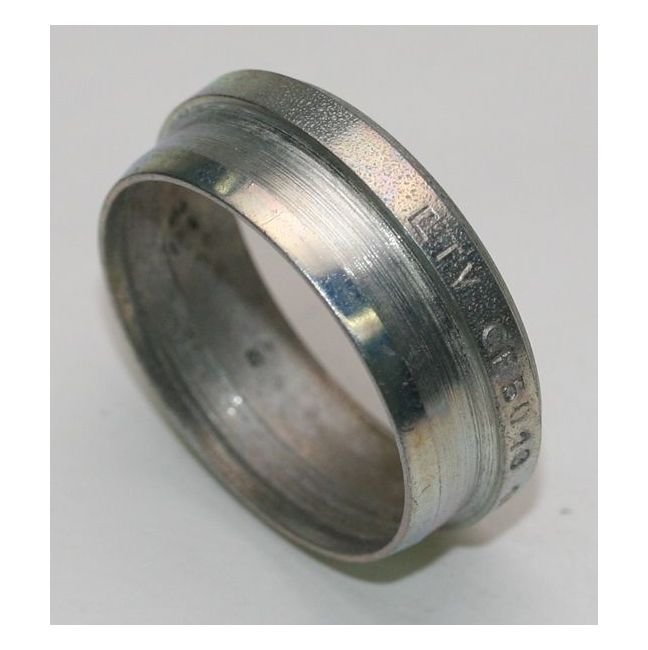

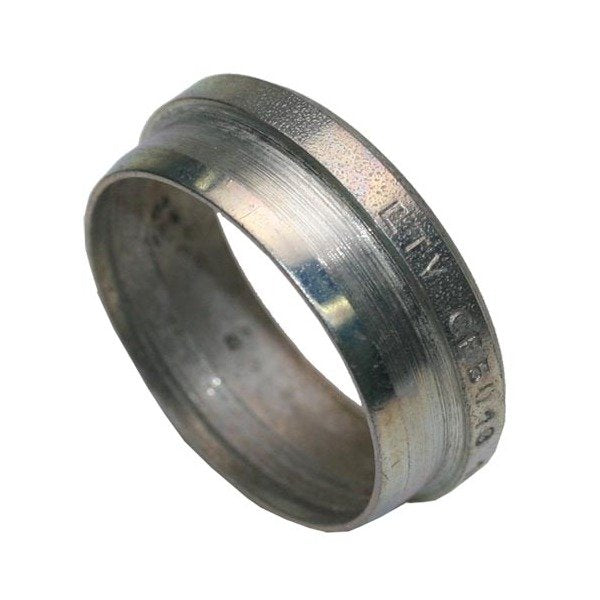

Stainless Steel Cutting Ring B3 - DIN 2353 Compression Fitting

Name: Stainless Steel Cutting Ring B3 - DIN 2353 Compression Fitting
Brand: World Wide Metric, Inc.
SKU: FIT-324d19
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-324d19

Reliable Stainless Steel Cutting Ring B3 for light-duty hydraulic systems, DIN 2353 compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

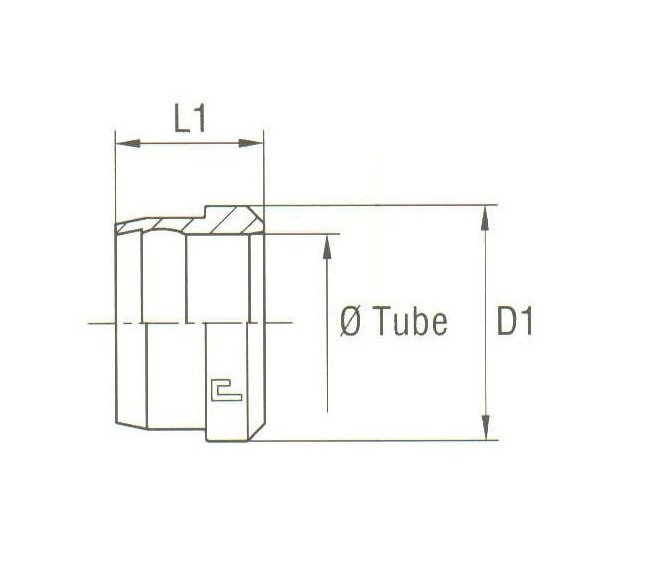

The Stainless Steel Cutting Ring B3 is designed for light-duty hydraulic systems with a nominal operating pressure of 160 bar. Made of high-quality stainless steel, this cutting ring ensures reliable performance and durability. With a tube diameter of 22mm, L1 of 10.5mm, and D1 of 27mm, it meets DIN 2353 standards for precision and quality. Ideal for industrial applications requiring secure tube connections.

Product Specifications

Specifications D1

27 mm

Specifications L1

10.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

22 mm
