Stainless Steel Cutting Ring B3 - DIN 2353 Compression Fittings
Stainless Steel Cutting Ring B3 - DIN 2353 Compression Fittings
SKU:FIT-c1c132
High-quality Stainless Steel Cutting Ring B3 for light-duty applications, meeting DIN 2353 standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Cutting Ring B3 - DIN 2353 Compression Fittings
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Cutting Ring B3 - DIN 2353 Compression Fittings
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

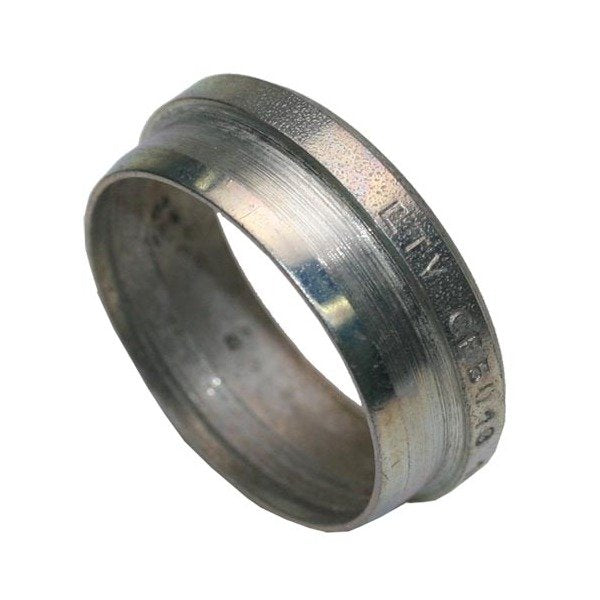

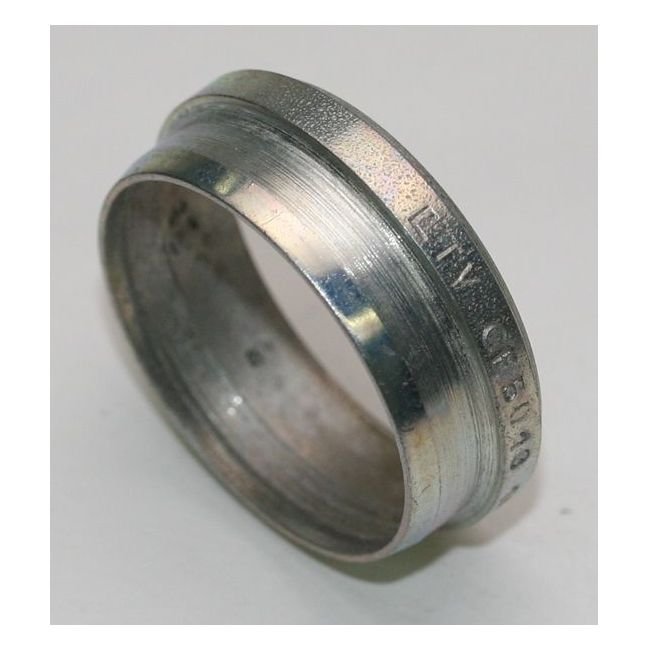

The Stainless Steel Cutting Ring B3 is designed for light-duty applications with a Nominal Operating Pressure of 160 bar. Made of high-quality stainless steel, this cutting ring ensures durability and corrosion resistance. With a Tube Diameter of 42.0 mm and precise dimensions L1: 13.0 mm, D1: 48 mm, it complies with DIN 2353 standards. Ideal for various industrial uses, this cutting ring provides a reliable and secure connection for optimal performance.
Product Specifications

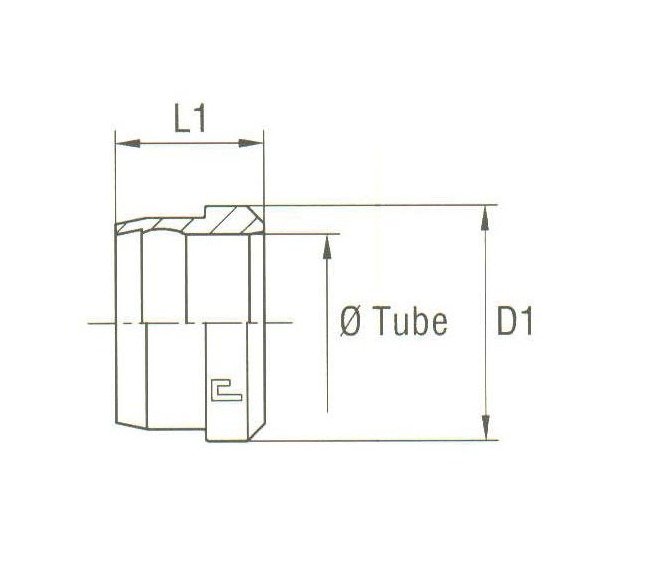

Specifications D1
48 mm
Specifications L1
13.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
