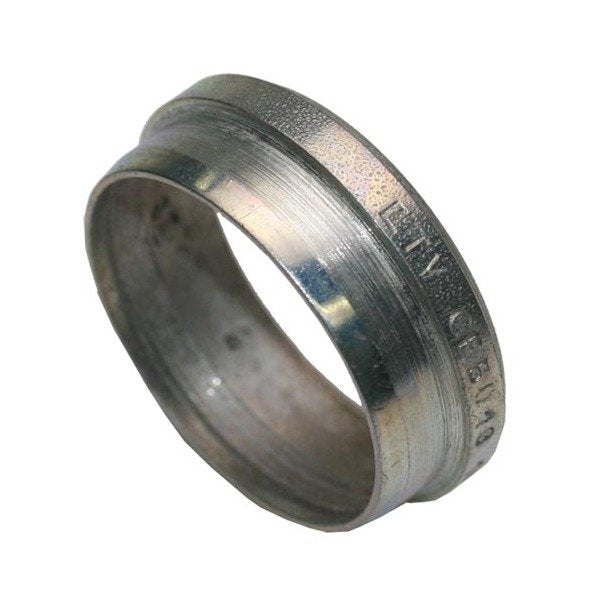

Stainless Steel Cutting Ring B3 for DIN 2353 Compression Fittings

Name: Stainless Steel Cutting Ring B3 for DIN 2353 Compression Fittings
Brand: World Wide Metric, Inc.
SKU: FIT-7b8219
Price: 24.99 USD
Availability: OutOfStock

SKU:FIT-7b8219

Stainless Steel Cutting Ring B3 for DIN 2353 Compression Fittings, Heavy Duty, 630 bar, Stainless Steel, DIN 2353 Compliant

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Cutting Ring B3 offers heavy-duty performance with a nominal operating pressure of 630 bar. Crafted from durable stainless steel, it is designed for tube diameters of 8.0 mm, ensuring a secure fit. With dimensions L1: 9.5 mm and D1: 12 mm, this cutting ring meets DIN 2353 standards, guaranteeing reliability and longevity in demanding industrial applications.

Product Specifications

Specifications D1

12 mm

Specifications L1

9.5 mm

Specifications Material

Stainless Steel

Specifications Nominal Operating Pressure

630 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

8.0 mm

Stainless Steel Cutting Ring B3 for DIN 2353 Compression Fittings
