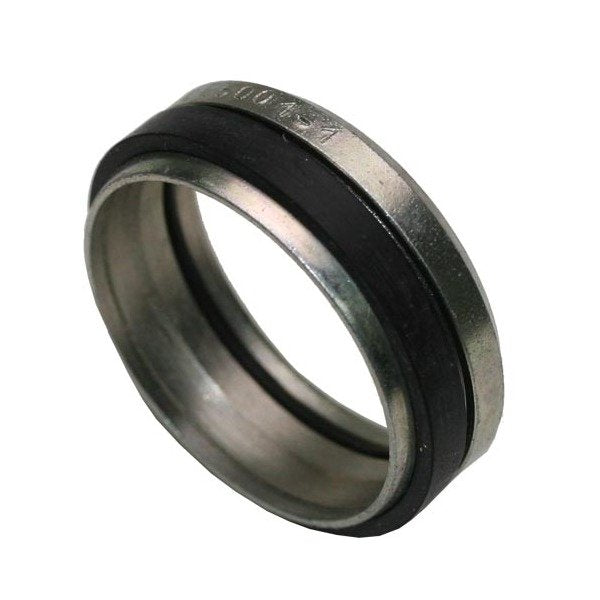

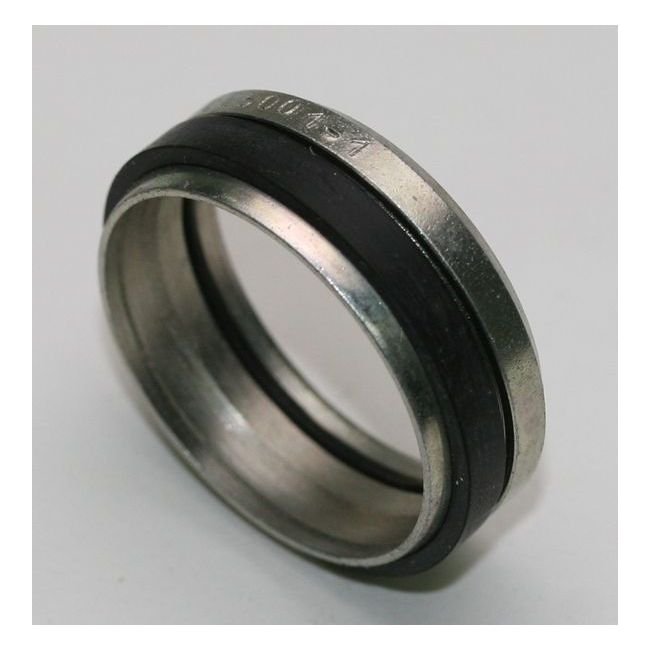

Stainless Steel Cutting Ring B4 for DIN 2353 Compression Fittings
Stainless Steel Cutting Ring B4 for DIN 2353 Compression Fittings
SKU:FIT-e48509
High-quality Stainless Steel Cutting Ring B4 for DIN 2353 Compression Fittings, ideal for light-duty applications. Meets DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Cutting Ring B4 for DIN 2353 Compression Fittings
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Cutting Ring B4 for DIN 2353 Compression Fittings
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

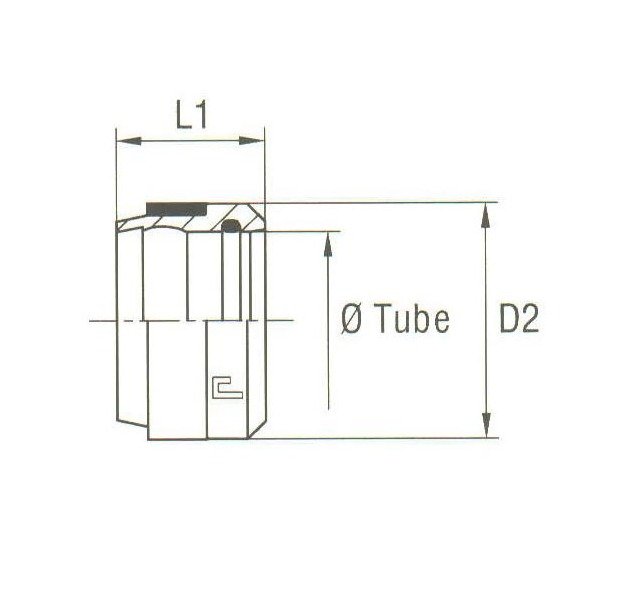

The Cutting Ring B4 is a precision-engineered fitting suitable for light-duty applications with a nominal operating pressure of 160 bar. Crafted from high-quality stainless steel, this cutting ring ensures reliable performance. With a tube diameter of 35.0mm and dimensions of L1: 13.0mm and D2: 41mm, it meets DIN 2353 standards for quality assurance, making it ideal for industrial use.
Product Specifications
Specifications D2
41 mm
Specifications L1
13.0 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
35.0 mm
