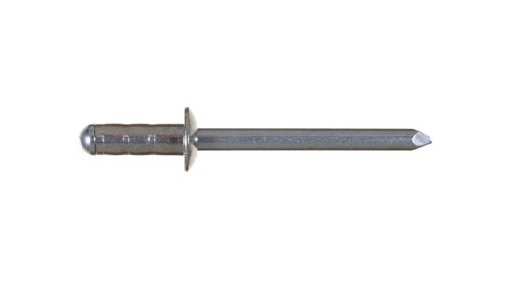

Stainless Steel Dome Head Rivet - 12.7mm Body Length
Stainless Steel Dome Head Rivet - 12.7mm Body Length
SKU:UFI-3966a2
Versatile U-Fix Stainless Steel Dome Head Rivet - Ideal for varied applications, ensures secure fastening
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Dome Head Rivet - 12.7mm Body Length
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Dome Head Rivet - 12.7mm Body Length
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The U-Fix All Stainless Steel Dome Head Rivet is a versatile and durable fastener designed for a wide array of applications. With a body material of Stainless Steel AISI 304 and a high-quality natural finish, this rivet ensures excellent performance. Its dome head style and precise dimensions make it ideal for securing rails, automotive components, and more. With a minimum grip range of 2.5mm and a maximum of 7.5mm, it provides reliable strength, with a nominal shear force of 660 kgf and a nominal tensile force of 510 kgf. Trusted by top brands like Ornit, this rivet guarantees secure and long-lasting fastening solutions.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
12.7 mm | 0.500 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 mm | 0.197 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.85 mm | 0.073 in
Nominal Dimensions Mandrel Diameter
3.38 mm | 0.133 in
Nominal Dimensions Maximum Grip Range
7.5 mm | 0.295 in
Nominal Dimensions Minimum Grip Range
2.5 mm | 0.098 in
Nominal Forces Nominal Shear Force
660 kgf | 1452 lbf
Nominal Forces Nominal Tensile Force
510 kgf | 1122 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Stainless Steel AISI 304
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
