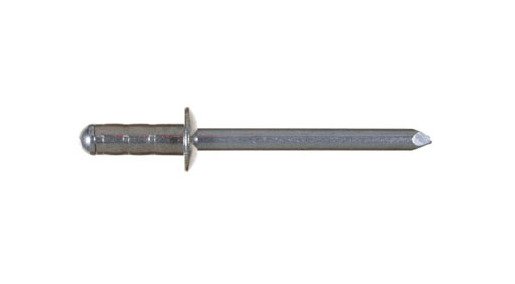

Stainless Steel Dome Head Rivet - 16.9mm Body Length
Stainless Steel Dome Head Rivet - 16.9mm Body Length
SKU:UFI-36aebe
Versatile Stainless Steel Dome Head Rivet - 16.9mm; Ideal for automotive interiors and trailer applications; High strength, durable material
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Dome Head Rivet - 16.9mm Body Length
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Dome Head Rivet - 16.9mm Body Length
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Dome Head Rivet with a 16.9mm body length is a versatile and durable fastener designed for various applications. Manufactured with Stainless Steel AISI 304, it offers exceptional grip strength with a minimum of 6.5mm and a maximum of 11.5mm. With a nominal shear force of 660 kgf and a nominal tensile force of 510 kgf, this rivet is ideal for automotive interiors, main cabins, side frames, and rails. Trust in its reliability for securing components within vehicles or trailers.
Product Specifications
Applications Automotive Application
InteriorThe U-Fix is a highly versatile purpose-built fastener, featuring an excellent multi-grip function ideal for a variety of purposes. Commonly used to secure components within the vehicle.
Nominal Dimensions Body Length
16.9 mm | 0.665 in
Nominal Dimensions Diameter
4.8 mm | 3/16 in
Nominal Dimensions Drillhole Size
5.0 mm | 0.197 in
Nominal Dimensions Head Diameter
9.8 mm | 0.386 in
Nominal Dimensions Head Thickness
1.85 mm | 0.073 in
Nominal Dimensions Mandrel Diameter
3.38 mm | 0.133 in
Nominal Dimensions Maximum Grip Range
11.5 mm | 0.453 in
Nominal Dimensions Minimum Grip Range
6.5 mm | 0.256 in
Nominal Forces Nominal Shear Force
660 kgf | 1452 lbf
Nominal Forces Nominal Tensile Force
510 kgf | 1122 lbf
Technical Specs Body Finish
Natural
Technical Specs Body Material
Stainless Steel AISI 304
Technical Specs Brands
Ornit
Technical Specs Carton Quantity
4000
Technical Specs Head Style
Dome
Technical Specs Mandrel Finish
Natural
Technical Specs Mandrel Material
Stainless Steel AISI 430/434 or Equivalent
