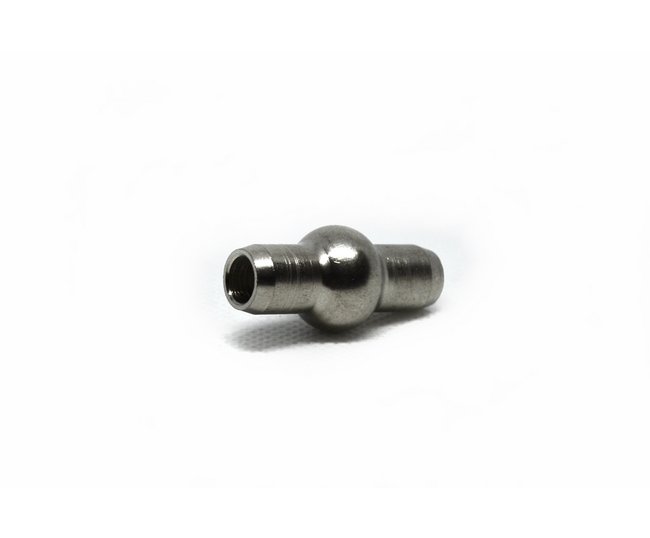

Stainless Steel Double Shank Balls MS20663-C2

Name: Stainless Steel Double Shank Balls MS20663-C2
Brand: Lexco Cable Manufacturing
SKU: MIL-41d1d0
Price: 24.99 USD
Availability: OutOfStock

SKU:MIL-41d1d0

Precision-engineered Stainless Steel Double Shank Balls meeting Mil Spec MS20663-C2 for secure crimping to wire ropes/cables.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

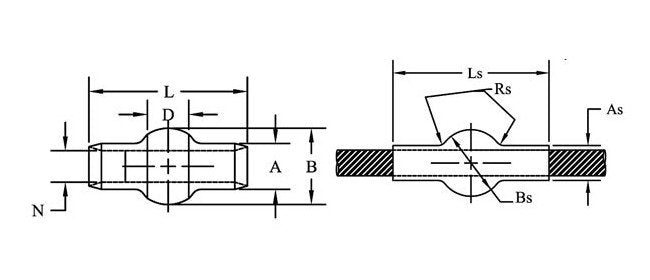

The Stainless Steel Double Shank Balls MS20663-C2 are precision-engineered for secure crimping onto wire ropes or aircraft cables. With dimensions meeting Military Specification MS20663-C2, these double shank balls ensure a reliable fit. Featuring before and after swage dimensions A, B, D, L, N, As, Bs, Ls, Rs with a sturdy construction, these balls offer optimal performance and durability, making them ideal for military and aerospace applications.

Product Specifications

Specifications As Diam

0.112

Specifications A Diam

0.127

Specifications Bs Spher Diam

0.19

Specifications B Diam

0.207

Specifications Cable Dia

1/16

Specifications D

0.114

Specifications Lbspc Before Swaging

0.0016

Specifications Ls Ref

0.39

Specifications L 0075

0.362

Specifications Mil Spec

MS20663-C2

Specifications N Diam

0.073

Specifications Rs Max Rad

0.014

CAGE

0T9L4

NAICS

332510

PSC

4030
