Stainless Steel Double Shank Balls MS20663 for Wire Rope Crimping

Name: Stainless Steel Double Shank Balls MS20663 for Wire Rope Crimping
Brand: Lexco Cable Manufacturing
SKU: MIL-8a9730
Price: 15.99 USD
Availability: OutOfStock

SKU:MIL-8a9730

High-quality stainless steel double shank balls for secure crimping. Compliant with Mil Spec MS20663-C5.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your wire rope assemblies with these high-quality stainless steel double shank balls designed for secure crimping. Compliant with military specification MS20663-C5, these balls offer precise dimensions for optimal performance. The before and after swage dimensions ensure a secure fit for your applications. With a cable diameter of 5/32, these double shank balls provide durability and reliability in challenging settings.

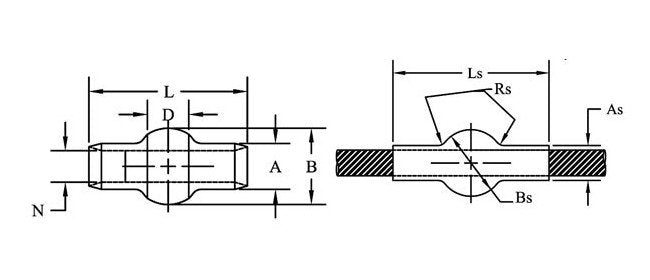

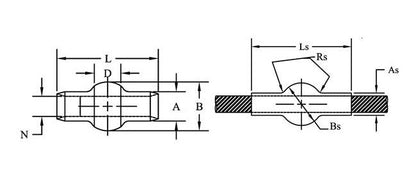

Product Specifications

Specifications As Diam

0.222

Specifications A Diam

0.254

Specifications Bs Spher Diam

0.379

Specifications B Diam

0.419

Specifications Cable Dia

5/32

Specifications D

0.227

Specifications Lbspc Before Swaging

0.0125

Specifications Ls Ref

0.953

Specifications L 0075

0.85

Specifications Mil Spec

MS20663-C5

Specifications N Diam

0.169

Specifications Rs Max Rad

0.028

CAGE

0T9L4

NAICS

332510

PSC

4030
