Stainless Steel Double Shank Balls MS20663 - Military Spec

Name: Stainless Steel Double Shank Balls MS20663 - Military Spec
Brand: Lexco Cable Manufacturing
SKU: MIL-033f7f
Price: 14.99 USD
Availability: OutOfStock

SKU:MIL-033f7f

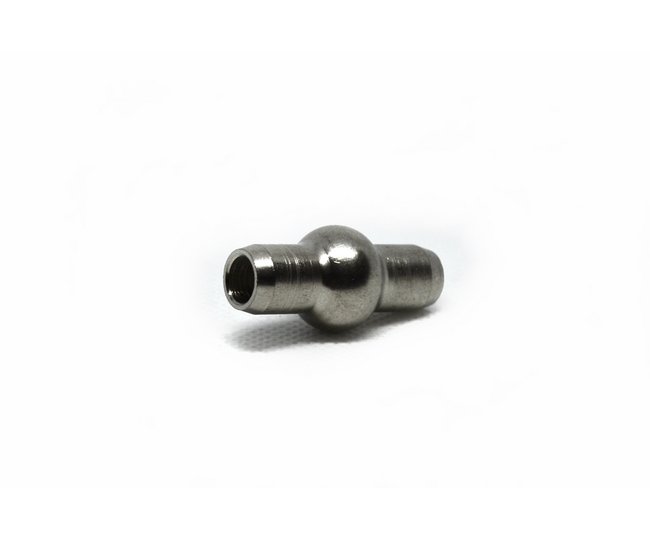

High-quality stainless steel double shank balls meeting Mil Spec MS20663-C6 for secure wire rope connections.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

These stainless steel double shank balls, meeting Mil Spec MS20663-C6, are precision-engineered for crimping onto wire ropes or aircraft cables. With dimensions compliant to military standards, these corrosion-resistant balls offer durability and reliability for diverse applications requiring secure connections. The dimensional accuracy ensures a tight and secure fit post-swaging, meeting the stringent requirements of institutional and government procurement.

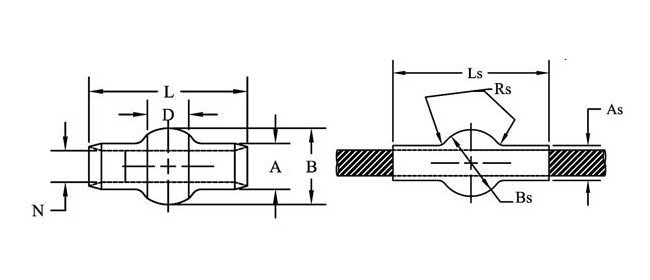

Product Specifications

Specifications As Diam

0.255

Specifications A Diam

0.293

Specifications Bs Spher Diam

0.442

Specifications B Diam

0.487

Specifications Cable Dia

3/16

Specifications D

0.264

Specifications Lbspc Before Swaging

0.025

Specifications Ls Ref

1.14

Specifications L 0075

1.012

Specifications Mil Spec

MS20663-C6

Specifications N Diam

0.201

Specifications Rs Max Rad

0.033

CAGE

0T9L4

NAICS

332510

PSC

4030
