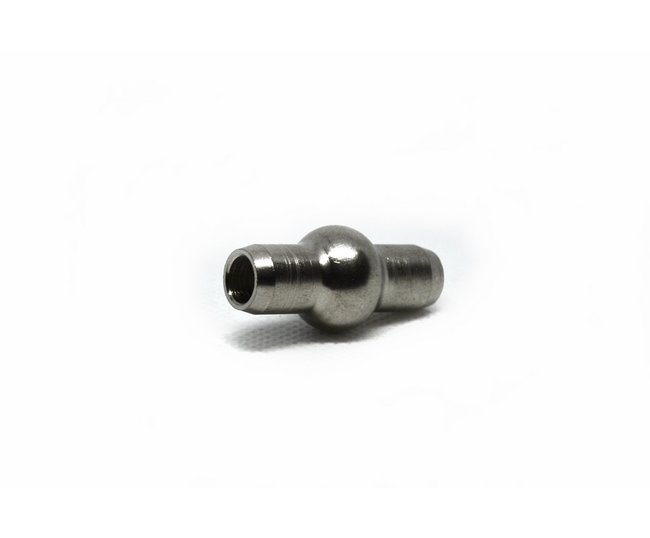

Stainless Steel Double Shank Balls MS20663 - Military Spec

Name: Stainless Steel Double Shank Balls MS20663 - Military Spec
Brand: Lexco Cable Manufacturing
SKU: MIL-3be912
Price: 29.99 USD
Availability: OutOfStock

SKU:MIL-3be912

High-quality stainless steel double shank balls meeting Mil Spec MS20663-C8 for wire rope and aircraft cable crimping.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

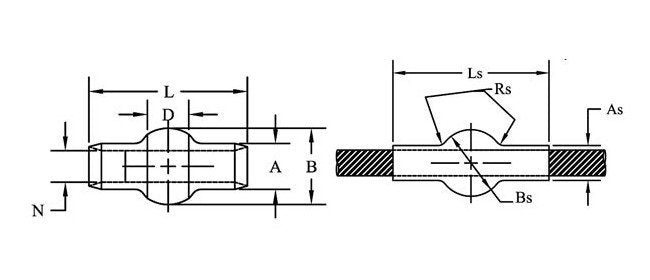

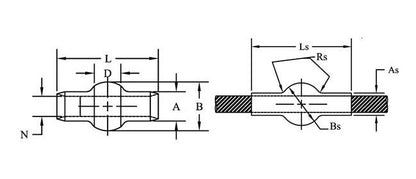

Crafted to exacting Mil Spec MS20663-C8 standards, these stainless steel double shank balls are precision-engineered for secure crimping onto wire ropes or aircraft cables. With before swage dimensions of A: 0.401, B: 0.624, D: 0.3395, L: 1.337, N: 0.264 and after swage dimensions As: 0.348, Bs: 0.567, Rs: 0.042, they offer unmatched durability and reliability for military, aerospace, and heavy-duty industrial applications.

Product Specifications

Specifications As Diam

0.348

Specifications A Diam

0.401

Specifications Bs Spher Diam

0.567

Specifications B Diam

0.624

Specifications Cable Dia

1/4

Specifications D

0.3395

Specifications Lbspc Before Swaging

0.04

Specifications Ls Ref

1.515

Specifications L 0075

1.337

Specifications Mil Spec

MS20663-C8

Specifications N Diam

0.264

Specifications Rs Max Rad

0.042

CAGE

0T9L4

NAICS

332510

PSC

4030

Stainless Steel Double Shank Balls MS20663 - Military Spec
